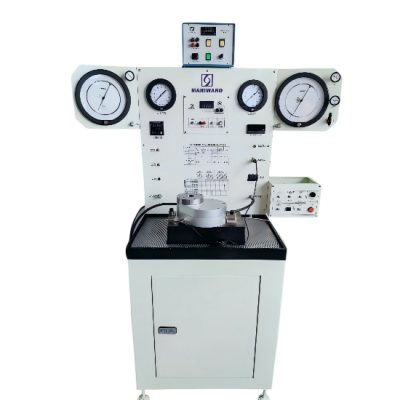

governor test stand

MARIWARD has wide-ranging applications and has become the preferred testing and calibration equipment for ?ship repair yards, marine diesel engine manufacturers, governor manufacturers, specialized repair facilities and petrochemical plants?.

WOODWARD: SG,PSG,UG8,UG10,UG15,UG40,3161,PGA-12,PGA-58,PGA-70,PG-PL,PGD,PGG-58,PGG-200,PGG-500,PGA-200,PGA-300,PGA-500,TG-10,TG-13,TG-17,UG-25+;

ZEXEL: RHD6,RHD10,RHD35;

YANMAR: NZ61;

REGULATEURS EUROPA: 1100,1500,1800, etc.

KEY TECHNICAL SPECIFICATIONS:

Power supply: 380V/440V, 50Hz/60Hz

Output power: 5 HP

Speed range: 0-2300 RPM (Accuracy: ±1 RPM)

Gear box speed: 0-6000 RPM (Accuracy: ±1 RPM)

Air Pressure?: 0–100 PSI (Accuracy: 0.1 PSI)

Oil Pressure?: 0–600 PSI (Accuracy: 1 PSI)

Oil Temperature?: 0–100°C (Accuracy: ±1°C)

KEY PERFORMANCE AND FUNCTIONS:

The Governor test stand supports dynamic parameter configuration for speed, pressure, shutdown protection signals, and other critical governor testing requirements. It enables comprehensive testing, including:

?1. Run-in Test?: Conducted at speeds specified in the governor's Technical Service Procedure (TSP).

?2. Pneumatic/AC/DC Motor Speed Setting?: Calibration trials for pneumatic and motor-driven speed adjustment systems.

3. Speed Range Calibration?: Configures maximum and minimum speed limits tailored to specific governor models.

4. Static Performance Test?: Simulates diesel engine no-load conditions to measure static fluctuation rate and droop.

5. Step Speed Change Test?: Tests sudden speed increases/decreases, recording transient response and stabilization time.

?6. Load Variation Test?: Simulates abrupt load application/rejection on diesel engines, evaluating speed deviation and recovery time.

7. Droop Adjustment?: Sets governor droop during simulated load-change scenarios.

8. Oil Pressure/Temperature Monitoring?: Real-time measurement and display of operating oil pressure and temperature.
