Home > Products > Diesel generators > Prime Power 48kw 60 kVA 50Hz Silent Diesel Generator Set with Weichai Engines

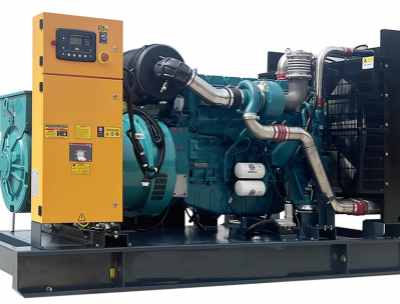

Prime Power 48kw 60 kVA 50Hz Silent Diesel Generator Set with Weichai Engines

FOB Price

USD $5000 - $8000 / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port FUZHOU
Payment TermsT/T L/C
Delivery Detail20 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WEICHAI	Place of Origin	China
Model Number	SP-WC	Output Type	AC Three Phase
Speed	1500/1800RPM	Frequency	50/60HZ
Rated Voltage	220-480V	Rated Power	48KW/60KVA

Product Description

Prime Power 48kw 60 kVA 50Hz Silent Diesel Generator Set with Weichai Engines

1.PRODUCT Feature
powerOUTPUT 48KW 60KVA
Powered by WEICHAI water-cooled diesel engine
Alternator:Stanford,Leroy somer,Marathon,
AMF panel with ATS
Soundproof,weather proof,trailer type for optional
Manual of engine,alternator and control system
with two storage battery and silencer
Fuel tank for 8 H running based on frame
1 year or 1000 H guarantee

2,Specifications:

Model		SP-W60P
Standby Power	kVA	6
Standby Power	kW	52
Prime Power	kVA	60
Prime Power	kW	48
Frequency	Hz	50
Output Voltage	V	400/230
Oil Consumption	L/H	0.07
Dimension For Open-type	mm	1650 X 650 X 1400
Weight For Open-type	kg	710
Dimension For Soundproof	mm	2500 X 1100 X 1430
Weight For Soundprof	kg	1150
Engine Model		WP4.1D66E200
No.of Cylinder		4 Cylinder in line
Bore	mm	105
Stroke	mm	120
Displacement	L	3.12
Cooling Fan Air Flow	m3/min	180
Compress Air Flow	m3/min	3.2
Exhaust Gas Flow	m3/min	6
Exhaust Gas Temperature	oC	470
Lubrication Oil Capacity	L	7.75
Cooling Water Capacity	L	17
Starting Voltage	V	12/24
Engine Max.Output Power	kW	66
Alternator Model		UCI 224 F
Alternator Brand		Stanford
Rate Output	kVA	72
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Protection Grade		IP23
Alternator for choice	We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.

3.Specifications(16-3000KW):

WEICHAI 1500 rpm, 3-phase 4-wire, 230/400V, PF=0.8
Generator Set Model		Power (KW/KVA)		Standby Power		Engine		Maximum current(A)
Prime	Standby	KW	KVA	KW	KVA	WEICHAI	Power(kw)	Maximum current(A)
SP-W16P-1	SP-W18S-1	16	16	17.6	17.6	WP2.3D25E200	23-25	77
SP-W25P-1	SP-W28S-1	25	25	27.5	27.5	WP2.3D33E200	30-33	120
SP-W20P	SP-W23S	16	20	18	22.5	WP2.3D25E200	23-25	32
SP-W23P	SP-W25S	18	23	20	25	WP2.3D25E200	23-25	36
SP-W30P	SP-W33S	24	30	26.4	33	WP2.3D33E200	30-33	48
SP-W38P	SP-W40S	30	37.5	32	40	WP2.3D40E200	36-40	58
SP-W45P	SP-W50S	36	45	40	50	WP2.3D48E200	44-48	72
SP-W60P	SP-W65S	48	60	52	65	WP4.1D66E200	60-66	94
SP-W72P	SP-W80S	58	72.5	64	80	WP4.1D80E200	72-80	115
SP-W80P	SP-W88S	64	80	70	87.5	WP4.1D80E200	72-80	126
SP-W94P	SP-W100S	68	85	72	90	WP4.1D100E200	90-100	130
SP-W100P	SP-W110S	80	100	88	110	WP4.1D100E200	90-100	159
SP-W125P	SP-W138S	100	125	110	138	WP6D132E200	120-132	199
SP-W150P	SP-W165S	120	150	132	165	WP6D152E200	138-152	238
SP-W170P	SP-W188S	136	170	150	187.5	WP10D167E200	150-167	271
SP-W200P	SP-W220S	160	200	176	220	WP10D200E200	182-200	318
SP-W225P	SP-W250S	180	225	200	250	WP10D238E200	216-238	361
SP-W250P	SP-W275S	200	250	220	275	WP10D238E200	216-238	397
SP-W250P	SP-W275S	200	250	220	275	WP10D264E200	240-264	397
N.A	SP-W340S	N.A	N.A	272	340	WP10D320E200	<320	491
SP-W313P	SP-W340S	250	313	272	340	WP12D317E200	288-317	491
SP-W375P	SP-W400S	300	375	320	400	WP13D385E200	350-385	577
SP-W400P	SP-W430S	320	400	344	430	WP13D405E200	<405	621
SP-W450P	SP-W500S	360	450	400	500	WP13D440E310	392-440	722
SP-W500P	SP-W550S	400	500	440	550	WP13D490E310	450-490	794
SP-W575P	SP-W630S	460	575	506	632	6M33D572E200	520-572	912
SP-W650P	SP-W725S	520	650	580	725	6M33D633E200	575-633	1046
SP-W675P	SP-W750S	540	675	600	750	6M33D670E200	610-670	1083
SP-W750P	SP-W825S	600	750	660	825	6M33D725E200	675-725	1191
SP-W800P	SP-W880S	640	800	704	880	12M26D792E200	720-792	1270
SP-W900P	SP-W1000S	720	900	800	1000	12M26D902E200	820-902	1443
SP-W1000P	SP-W1100S	800	1000	880	1100	12M26D968E200	880-968	1588
SP-W1125P	SP-W1250S	900	1125	1000	1250	12M33D1108E200	1007-1108	1804
SP-W1250P	SP-W1375S	1000	1250	1100	1375	12M33D1210E200	1100-1210	1985
SP-W1375P	SP-W1500S	1100	1375	1200	1500	12M33D1320E200	1200-1320	2165
SP-W1500P	SP-W1600S	1200	1500	1320	1650	12M33D1450E310	1350-1450	2382
SP-W1550P	SP-W1750S	1240	1550	1400	1750	16M33D1530E310	1390-1530	2526
SP-W1625P	SP-W1800S	1300	1625	1440	1800	16M33D1580E310	1440/1583	2598
SP-W1750P	SP-W1900S	1400	1750	1520	1900	16M33D1680E310	1530-1680	2742
SP-W1875P	SP-W2050S	1500	1875	1640	2050	16M33D1800E310	1680-1800	2959
SP-W2000P	SP-W2250S	1600	2000	1800	2250	16M33D1980E310	1800-1980	3248
SP-W2000P	SP-W2250S	1600	2000	1800	2250	20M33D2020E310	1850-2020	3248
SP-W2250P	SP-W2500S	1800	2250	2000	2500	20M33D2210E310	2010-2210	3609
SP-W2250P	SP-W2500S	1800	2250	2000	2500	12M55D2210E310	1985-2200	3609
SP-W2500P	SP-W2500S	2000	2500	2200	2750	12M55D2450E310	2200-2450	3969
SP-W2750P	SP-W3000S	2200	2750	2400	3000	12M55D2700E310	2420-2700	4330
SP-W3000P	SP-W3300S	2400	3000	2640	3300	16M55D2900E310	2646-2900	4763
SP-W3250P	SP-W3750S	2600	3250	3000	3750	16M55D3300E310	2900-3300	5413
SP-W3750P	SP-W4125S	3000	3750	3300	4125	16M55D3600E310	3300-3600	5954

Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.
