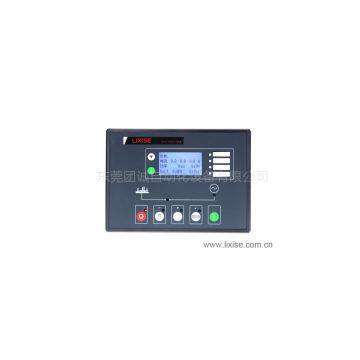

LXC6310 generator Remote Controller

Products:

      LXC6310: for stand-alone automated, controlled by the remote power signal generators from the start and stop;

       LXC63X0 / LXC51X0 series controller uses 32-bit microprocessor and embedded system control technology, precision measuring 16 parameters, 32 programmable inputs, 35 warning protection parameters, 85 programmable output, a total of 121 can be configured parameters. Of which 108 can be configured from the front panel. With LCD graphic display module can display various engine parameters and generator parameters. Being rapidly expanded use in multiple areas, such as: small power plants, biogas power generation, oil power, field engineering, factory, fire pumps, mobile base stations, and many other fields. Suitable for gasoline, diesel, natural gas, biogas and other power equipment, many well-known domestic and foreign enterprises have been widely supporting applications. Completely replace DSE51X0 / 52X0 series controller.

Product performance and features:

      1, using 32-bit ARM microcontrollers, hardware integration, high reliability has been further improved;

      2, LCD LCD is 128x64, with backlight, Chinese, English and other languages optional interface operation, and can be on-site selection, easy commissioning test machine;

      3, with advanced networking capabilities via GPRS mobile network and Internet connectivity, the network in any place can RMON;

      4, in particular to provide for the leasing industry management the perfect solution: leasing out via PC remote management unit, can monitor all operating parameters (oil pressure, water temperature, voltage, current, power, etc.), you can change the configuration at any time to protect the unit improperly applied, can record 200 detailed fault information, including: key parameters downtime reasons, when the voltage, current, power, oil pressure, water temperature, etc., and ready to be uploaded to the monitoring machine. Another multi-level password management to facilitate the lease term management;

      5, with RS485 communication interface, using the MODBUS protocol can achieve "three remote" function;

      6, control and protection functions: automatic diesel or natural gas generator set start / stop, sub-gate (ATS switch) and perfect protection fault display function;

      7, parameter settings: allows users to change the setting of its parameters, and memory in the internal FLASH memory when the system is powered down is not lost. Most of the parameters can be adjusted from the front panel of the controller, all parameters can have SMS function, you can automatically send an alarm message to five phone numbers set an alarm when the generator set, generator sets can also be controlled via SMS and access to power unit status;

      8, using a PC via RS232 interface adjustments can also be used to adjust the PC via RS485 interface;

      9, a variety of temperature, pressure, oil level sensor curves can be used directly, and custom sensor curve;

     10, a variety of starting conditions (speed sensor, hydraulic, power generation) optional;

     11, has a history of failure record, real time clock, timer switch (monthly / weekly / boot once a day and can be set with or without load) function;

     12, all outputs are relay outputs;

     13, mains overvoltage, undervoltage, over frequency, under frequency, phase, reverse phase sequence function, power generation has overvoltage, undervoltage, over frequency, under frequency, over current, over power, reverse power, phase , reverse phase sequence function; three fixed analog sensors (temperature, oil pressure, level);

     14, two programmable analog sensor can be set to the temperature or pressure or liquid level sensor;

Specifications:

      Operating voltage: DC8.0V to 35.0V continuous power supply

      Total power consumption: <3W (standby mode: ≤2W)

      Alternator Voltage Input: 20V AC-360 V AC (ph-N) 3 phase 4 wire

      Three-phase four-wire 30V AC-600 V AC (ph-ph) 3-phase 3-wire

      Three-phase three-wire 20V AC-360 V AC (ph-N)

      Single-phase two-wire 20V AC 620 V AC (ph-h)

       Two-phase three-wire

       Alternator Frequency: 50 Hz / 60Hz

       Speed sensor voltage: 1.0 to 70V (rms)

       Speed sensor frequency: maximum 10000Hz

       Start relay output: 16Amp controller supply voltage output

       Fuel Relay Output: 16Amp controller supply voltage output

       Programmable relay output 1: 16Amp controller supply voltage output

       Programmable relay output 2: 16Amp controller supply voltage output

       Programmable relay output 3: 16Amp controller supply voltage output

       Programmable relay output 4: 16Amp 250VAC passive output

       Power switch on the relay programmable relay output 5: 16Amp 250VAC passive output

       Mains closing relay programmable relay output 6: 16Amp 250VAC passive output

       Dimensions: 240mm x 172mm x57mm

       Hole size: 214mm x 160mm

       Current transformer secondary current: Rated: 5A

       Working conditions: Temperature: (25 ~ 70) ° C Humidity: (20 ~ 90)% RH

       Storage conditions: Temperature: (- 40 ~ + 70) ° C

       Protection class: IP55: when waterproof rubber ring between the controller and the control panel.

                       IP42: When there is no waterproof rubber ring between the controller and the control panel.

       Dielectric strength: Object: in the input / output / power between

                      Reference Standard: IEC688-1992

                     Test methods: AC1.5Kv / 1min leakage current 3mA

       Weight: 0.90kg
