High Frequency DC Pulse TIG MMA Inverter Welding Machine HF ARC AMP Display
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
IGBT Based Inverter DC HF TIG / MMA ARC Welding Machine High Frequency
-
Wholesale Small Inverter Pulse TIG Welding Equipment TIG Welder 220v 6KVA 3-200A
-
Eleletric 250Amp TIG Welding Machine ARC TIG Welder With IGBT Inverter Technology
-
Three Phase Portable TIG Welding Machine 50/60HZ With Plastic Panel TIG400DP
-
Digital DC Pulse TIG Welding Machine Advance Inverter Three Phase Welder
-
ARC Force TIG MMA Electric Welding Machine / Industrial Welding Equipment
Product Details
| Brand Name | JL | Place of Origin | China | |
| Model Number | TIG200P |
Product Description
Certification:ISO9001,CE,ROHS

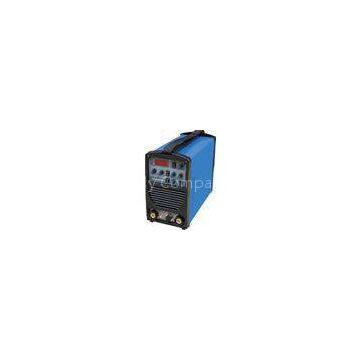

High frequency DC pulse TIG/DC TIG/MMA inverter TIG200P tig welding machine
Description:
1) MMA/TIG welder feature advanced inverter technology for the most flexible DC TIG/STICK solutions in the welding industry.
2) HF starting makes it easy to establish an arc under a variety of conditions.
3) Automatic over-voltage and over-current protection.
4) Plastic panel, compact, adaptable and easy to carry around.
5) Applicable for welding various kinds of metal, such as carbon steel, stainless steel, alloy steel, copper?
6) Supplied complete with TIG torch, stick electrode holder, earth cable.
Features:
IGBT INVERTER TECHNOLOGY
DC PULSE TIG/DC TIG/MMA FUNCTION
HF ARC START
2T/4T AT TIG MODE
WITH PLASTIC PANEL
AMP DISPLAY
WITH MMA WELDING FUNCTION
Specification:
| Item | TIG160P | TIG200P |
| Input voltage(V) | 1*220/230/240V | 1*220/230/240V |
| Frequency(HZ) | 50/60HZ | 50/60HZ |
| Input power capacity(KVA) | 4.8KVA | 6KVA |
| No-load voltage(V) | 70V | 70V |
| Output current range(A) | 5-160A | 5-200A |
| Rated duty cycle(%) | 35(40℃) | 35(40℃) |
| Current up-slope time(S) | 0-5S | 0-5S |
| Current down-slope time(S) | 0-5S | 0-5S |
| Gas post flow time(S) | 0-10S | 0-10S |
| Pulse frequency(HZ) | 0.5-25HZ | 0.5-25HZ |
| Weight(KGS) | 10.5KGS | 9KGS |
Stand accessories:
1PC air cooled TIG torch WP26X4M cable
1PC electrode holder 300A X3M welding cable
1PC earth clamp 300A X3M welding cable
1PC 2M PVC inlet gas hose
Option:
Duty cycle:60% is avaiable
Foot controller to adjust the TIG current
