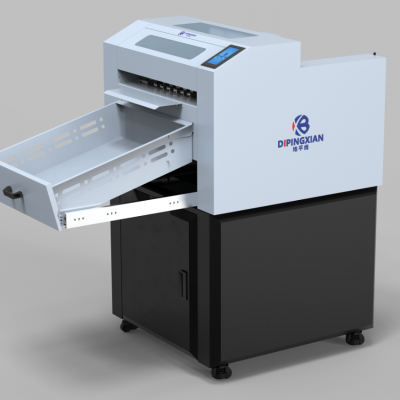

Shanghai Horizon XB-ZN360plus adsorption double-head die-cutting machine

Product Description:

Intelligent lifting platform:

The adsorption type adopts a large-capacity intelligent lifting platform, which can place 12 cm of material (about 1,000 pieces). Save time to frequently release paper, improve work efficiency and save labor. It adopts an automatic paper feeding design with vacuum adsorption system, anti-dual sheet function of paper back and forth, and a widened adsorption belt, making paper feeding smoother and effectively reducing double sheets and paper jam problems. Can be adapted to cutting of a variety of materials.

It is also equipped with a large-capacity paper connection tray design, making it more convenient to collect paper.

Double knife design: adopts a double knife design, and can be completed in one go half-cut, full cut, dotted lines, indentation, etc. without secondary paper removal.

At the same time, both blades are controlled by independent voice coil motor (motor), and the cutting and indentation are cut and indentation are independently controlled, so that the cutting and indentation force is controlled more accurately and the cutting and indentation effect is more stable. The double knife uses independent voice coil motor, which has a longer service life, improves the indentation cutting effect and effectively reduces the failure rate.

High-performance servo motor: All operation are controlled by high-precision overspeed servo motors, which are faster, have higher accuracy, have smaller sound, better stability, and have more accurate control. Overspeed servo motor realizes closed-loop control of position, speed and torque; avoids the problem of stepping motor losing steps for a long time, and is suitable for occasions where high-speed response requirements are required.

High stability beam: High-precision beam design, guide rails are all made of aluminum + steel running structure, and the car adopts all-aluminum lightweight structure, with eight-point support and fixed, and the support points are supported by steel bars. It is not easy to deform and wear after long-term operation.

The car uses P5-level bearings to run. The high-precision beam greatly improves the operating accuracy and stability of the machine, ensuring that the machine does not shake during high-speed operation, and has better stability.

High-precision car: The cutting of the lower cut is controlled by a voice coil motor (voice coil motor). The voice coil motor has high precision and high speed, and is faster in response, durable, wear-resistant and long service life. In this way, the cutting material's cutting strength is controlled more accurately and more stable, and it is not easy to have inconsistent depths, ensuring the pass rate of the finished product, effectively eliminating the waste of materials, and realizing unattended.

High-resolution CCD camera: It adopts a high-resolution CCD high-definition camera for accurately detecting marking points (corners are compatible with dots), and can accurately detect marking points on color and reflective materials. It can be typesetted according to customer needs, thereby saving materials and reducing production costs. It can also support lighting brightness adjustment, and the lighting brightness can be adjusted freely according to different materials to increase the accuracy of identification.

QR code system: It can automatically read the QR code printed on the material. You only need to add the QR code when making the file and print out the QR code file. The machine will automatically read the QR code file and accurately cut it. This function can effectively reduce the time to find files and improve work efficiency. It can also support the reading of network QR codes. When making QR code files, save the QR code file to the specified computer folder. Select QR code to read in the plug-in. The machine will automatically read the specified QR code folder, automatically find the QR code for accurate cutting, thereby improving work efficiency.

Intelligent software: The operation software adopts CDR, AI+ plug-in mode, generates corner lines and dot marking points with one click, and double marking points are recognized. The plug-in automatically generates marking points based on the size and content of the paper, typed in one click, and generates outlines with one click. The software automatically optimizes the cutting path, which is convenient for user operations, is simple and fast, and improves user work efficiency. At the same time, the machine optimizes the paper pickup method. When the paper pickup fails, the paper will be automatically returned. The paper feeding will be repeated three times again to ensure the smoothness of the paper feeding.

Various transmissions: The operation software adopts remote control of network cable, WIFI, USB disk, and USB data cable, which can support one computer to connect to multiple machines to send synchronously. Up to 100 machines can be connected at the same time, or one machine can use multiple computers to send remotely. Each computer can send the operating machine separately, without the need for a special computer to operate. For graphic advertising stores, the machine location can be placed at will, and remotely sent by network ports and WIFI, and does not use traditional USB data cables to connect the machine, making it more convenient to use. You can also use a USB drive to operate offline without using a network or USB cable.

Through the printer, marking points and patterns are printed out, and the machine automatically feeds paper, automatically positions, automatically cuts, and automatically outputs paper, realizing automatic operation.

Humanized function design: It has a count skip recording function. When the user puts more materials into the machine for cutting, the user does not need to look at the machine. There will be a count. If there is a material that fails to scan the middle, the machine will automatically spit out the material and record the number of scans in the settings. The user only needs to check the number of skipped parts after the machine is cut, which can determine whether there is any problem with the cutting, which saves customers time and realizes unmanned duty of the machine. Improve work efficiency and high-quality materials: The motherboard chip uses ST imported chip, which has high performance, low power consumption, durability and very good stability.

X and Y running belts are made of imported Pioneer belts, with good transmission stability, higher accuracy, durability and very strong stability. The Sharp sensor is used to provide high sensitivity, long life and the sensor status can be observed in the machine settings. When problems arise, users can find problems and repair them in time. The paper feed adopts a thickened barrier gauge with a thickness of 9 mm. In the case of large batches of paper removal, the barrier is not easy to loosen, and the paper is not easy to skew and smooth.

Technical parameters:

Model: ZN-360plus adsorption die-cutting machine

Display mode: 5-inch full touch operation interface

Material placement range: Width: 210-370mm, 297-750mm

Number of blades: double blades

Blade tools: engraving, indentation

Mechanical accuracy: 0.01mm

Fastest cutting speed: 1600mm/s

Maximum pressure: 1000g

Minimum cutting pattern: 5mm diameter circle

The thickest material that can be cut: 350g

Feeding time: about 4 seconds

Transmission method: network cable, WiFi, U disk, USB data cable

Paper capacity: 12 cm (about 1,000 sheets)

Language: Chinese, English, Spanish, Danish, Turkish, Hungarian

Voltage: Support 110V/220V (automatic voltage conversion)

Operating software: AI (CS6-2023), coreidraw (x4-x8.2017-2023) (continuously updated)

Operating environment: Temperature: 10° to 35° Humidity: 35 to 75% RH

Computer system: Windows7-10, Apple system

Dimensions (mm):

Non-expanded size: length 790mm width 800 height 1230 (length x width x height):

Expanded size: length 1420mm width 800 height 1230

Gross weight: about 182kg (total volume conversion is about 210kg)

Packing size: length 970mm width 950mm height 1390mm
