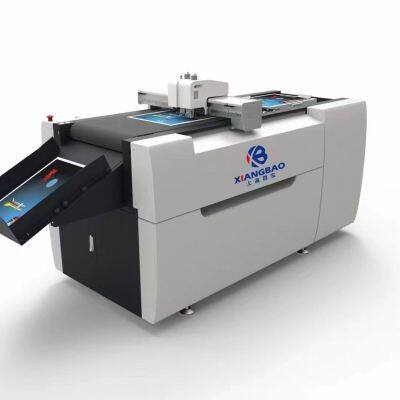

Shanghai Xiangbao 7553 multi-function digital proofing die cutting machine

Product Description:

Description:

The fully automatic digital proofing die-cutting machine adopts a fully automatic paper-loading suction cup and a fully automatic lifting and feeding platform. It can be used for high-speed and accurate production processes such as full-cut, half-cut, crease, marking, etc. It is suitable for quick printing of graphics and texts, advertising logos, proofing in the printing and packaging industries and small batch personalized customized production. It is a cost-effective intelligent device that meets all your creative processing.

features:

01 High-frequency electric knife: more cutting materials, thicker cutting thickness, meet different customer needs

02 Set of intelligent cutting/indentation/drawing functions to meet all your creative processing journeys: Cut labels of any shape, cut and indent any box type cardboard box

03 Accurate automatic positioning system: Combined with high-definition CCD camera, it realizes automatic precise positioning of various materials, automatic cut, and solves problems such as inaccurate positioning and printing deformation, so as to achieve simple and accurate cutting purposes

04 QR code management system: Scan the QR code to quickly read the cutting task 05 Self-lifting and loading system: Fully automatic loading system, making production more efficient".

Technical parameters:

Model: 750-530 (with vibrating knife)

Cutting area (length*width) 750MM*530MM

Floor area (length*width*height) 2600MM*1000MM*1150MM

Tool indentation knife, semi-cutting knife, electric vibration knife, sharp knife

cutting material can be cut into: KT board, PP paper, foam board, car sticker/self-adhesive, reflective material, jam paper, plastic, corrugated paper, corrugated plastic, ABS, magnetic patch

cutting thickness ≤6MM

Maximum cutting speed 1000MM/S

feeding system  vacuum suction cup

Repeat accuracy ±0.1MM

Computer configuration: computer configuration i5, 10400

File format PLT, DXF, HPGL, PDF, EPS

Voltage 200V±10%50HZ

The machine power is 3.75KW.

Net weight of the machine (approximately): 400 kg.

Machine size (approximately): 2100*960*1200mm.

The machine shipment volume is converted to weight: 650 kg.

Volume: 2220*1150*1440mm
