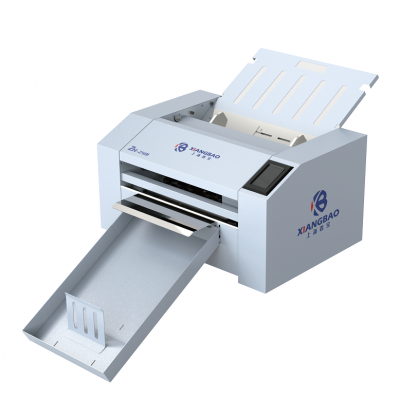

Shanghai Xiangbao XB-ZN2501 high-speed die-cutting machine

Product Description:

New upgrade: Use new upgrade motherboard, circuit and motor control which makes sure this model is faster, more efficient and more stable operation. The newly upgraded press wheel + pressure rod configuration, 6 sets of press wheel + reinforced press rod, and the pressure release is more even. The paper press is more stable and the cutting is more accurate. High-performance servo motor: All operation are controlled by high-precision overspeed servo motors, which are faster, have higher accuracy, have smaller sound, and have better stability. The control is more accurate. The overspeed servo motor realizes closed-loop control of position, speed and torque; avoids the problem of stepping motor losing steps for a long time.

It is suitable for occasions where high-speed response requirements are required. High stability beam: It adopts high-precision beam design, referring to the Japanese Tuwang cross beam running structure. At the same time, the car adopts all-aluminum lightweight structure, with eight-point support fixed, and the support points are supported by steel bars. It is not easy to deform and wear after long-term operation.

The car uses Japanese NSK bearings to run. It is durable. The high-precision beam greatly improves the operating accuracy and stability of the machine, ensuring that the machine does not shake during high-speed operation and has better stability. High-power car: The cutting of the cut is controlled by a high-power solenoid, and the pressure can reach 2,000 grams of super large knife pressure. There are more types of materials that can be cut, durable, and have a longer wear-resistant service life. The cutting of 2,000 grams of knife pressure is more stable, and it is not easy to have inconsistent depth and shallow, ensuring the passing rate of the finished product, effectively eliminating the waste of materials, and realizing unattended. High-resolution CCD camera: It uses a high-resolution CCD high-definition camera for accurately detecting marking points (corners are compatible with dots), and can accurately detect marking points on color and reflective materials.

It can be typesetted according to customer needs, thereby saving materials and reducing production costs. It can also support lighting brightness adjustment. The light brightness can be freely adjusted according to different materials to increase the accuracy of recognition. The camera can scan 4 marking points in less than 3 seconds, saving production time, improving work efficiency, and reducing costs. QR code system: It can automatically read the QR code printed on the material. You only need to add the QR code when making the file and print out the QR code file. The machine will automatically read the QR code file and accurately cut it. This function can effectively reduce the time to find files and improve work efficiency. In addition, 2501 can also support network QR code reading. When making QR code files, save the QR code file to the specified computer folder. Select QR code to read in the plug-in. The machine will automatically read the specified QR code folder and automatically find the QR code for accurate cutting. This will improve work efficiency. Intelligent software: The operation software adopts CDR, AI+ plug-in mode, generates corner lines and dot marking points with one click, and double marking points are recognized. The plug-in automatically generates marking points based on the size and content of the paper, typed in one click, and generates outlines with one click. The software automatically optimizes the cutting path, which is convenient for user operations, is simple and fast. It improves user work efficiency.

At the same time, the machine optimizes the paper pickup method. When the paper pickup fails, the paper will be automatically returned. Repeat the paper feed three times again to ensure the smoothness of the paper feed. Multiple transmissions: The operation software adopts remote control of network cable, WIFI, USB disk, and USB data cable, which can support one computer to connect to multiple machines to send synchronously. Up to 100 machines can be connected to one machine at the same time, or one machine can use multiple computers to send remotely. Each computer can send the machine separately without a special computer operation. For graphic advertising stores, the machine location can be placed at will, and remotely sent by network ports and WIFI, and does not use traditional USB data cables to connect the machine, making it more convenient to use. You can also use a USB drive to operate offline without using a network or USB cable. Through the printer, marking points and patterns are printed out, and the machine automatically feeds paper, automatically positions, automatically cuts, and automatically outputs paper, realizing automatic operation. Humanized function design: It has a count skip recording function. When the user puts more materials into the machine for cutting, the user does not need to watch the machine cutting and will count. If there is a material that fails to scan the middle, the machine will automatically spit out the material, and the scan failure will be recorded in the settings.

The user only needs to check the number of skipped parts after the machine is cut, which can determine whether there is any problem with the cutting, which saves customers time and realizes unmanned duty of the machine. Improve work efficiency and high-quality materials: The motherboard chip uses ST imported chip, which has high performance, low power consumption, durability and very good stability. The X and Y running belts are made of imported Pioneer belts, which have good transmission stability, higher accuracy, durability and very strong stability. The Sharp sensor is used to have high sensing sensitivity, long life and the sensor status can be observed in the machine settings. When problems arise, it is convenient for users to discover problems and repair them in time. The paper feed adopts a thickened barrier gauge with a thickness of 9 mm. In the case of large batches of paper removal, the barrier is not easy to loosen, and the paper is not easy to skew and smooth.

Technical parameters: Product parameters

Model: ZN-2501 Display

mode: 4-inch color capacitive touch screen

Material cutting range: Width: 200-330mm.200-800mm (increased length requires extending the paper tray yourself)

Mechanical accuracy: 0.01254mm

Fastest cutting speed: 1500mm/s

Maximum pressure: 2000g

Minimum cutting pattern: 5mm diameter circle

The thickest material that can be cut: 350g

Feeding time: about 3 seconds

Transmission method: network cable, WiFi, U disk, USB data cable

Paper capacity: 180 sheets (0.2 thickness)

Language: Chinese, English, Spanish, Danish, Turkish, Hungarian

Voltage: Support 110V/220V (automatic voltage conversion)

Operating software: AI (CS6-2023), coreidraw (x4-x8.2017-2023) (continuously updated)

Operating environment: Temperature: 10° to 35°, humidity: 35to75%RH

Computer system: Windows 7-10

Packing size (approximately): 830*610*620mm

Packing weight (approximately): 61kg
