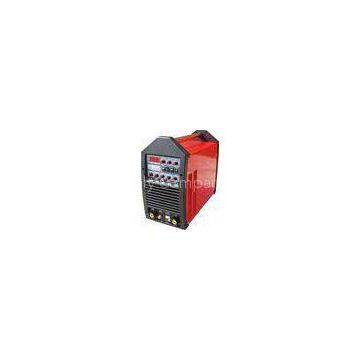

Light Weight AC/DC Pulse TIG Welding Machine , HF TIG Welder CE ROHS
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Electric Portable TIG Welder Digital IGBT Double Inverter For Industrial
-
Multi Function High Frequency TIG Welding Machine For Carbon Steel / Aluminum Alloy
-
Mini Digital Inverter ARC TIG Welder For Steel Welding With 2T/4T Down Slop Function
-
Digital AC / DC Pulse MMA TIG Welding Machine , Portable TIG Welder 220V
-
Portable MMA TIG Inverter Welding Machine , IGBT Inverter TIG Welder Full Wave Control
-
Multi Function MMA TIG Welding Machine , Industrial High Frequency Tig Welder
Product Details
| Brand Name | JL | Place of Origin | China | |
| Model Number | INV200ACDC |
Product Description
Certification:ISO9001,CE,ROHS
China manufacture welder Inverter AC/DC pulse TIG welding machine INV200ACDC
Description:
1) IGBT advanced double inverter technology
2) Single phase power supply
3) Light weight
4) HF arc start for TIG, arc force for MMA
5) 2T/4T and pulse control function for TIG
6) AC/DC TIG suitable for mild steel, stainless steel, aluminum
7) Digital display and current preset adjustment
8) Can be with foot pedal
9) CE, ROHS
10)Over heating and current protection
Features:
IGBT INVERTER TECHNOLOGY
AC/DC TIG/MMA FUNCTION
HF ARC START
2T/4T FOR TIG WELDING
WITH PLASTIC PANEL
AMP DISPLAY
Specification:
| Item | INV160ACDC | INV200ACDC |
| Input voltage(V) | 1*220/230/240V | 1*220/230/240V |
| Frequency(HZ) | 50/60HZ | 50/60HZ |
| Input power capacity(KVA) | 4.8KVA | 6KVA |
| No-load voltage(V) | 60-80V | 60-80V |
| Out current range(A) | 20-160A(AC), ? ? ? ? ? 5-160A(DC) | 20-200A(AC), ? ? ? ? 5-200A(DC) |
| Rated duty cycle(%) | 60%(40℃) | 60%(40℃) |
| Pre gas flow time(S) | 0-10S | 0-10S |
| Gas post flow time(S) | 1-25S | 1-25S |
| Current down-slope time(S) | 0-10S | 0-10S |
| SP value(balance) | 30-70% | 30-70% |
| AC frequency(HZ) | 20-250HZ | 20-250HZ |
| Weight(KGS) | 23KGS | 25KGS |
Stand accessories:
1PC air cooled TIG torch WP26X4M cable
1PC electrode holder 300AX3M cable
1PC earth clamp 300A X3M welding cable
1PC 2M PVC inlet gas hose
Option:
Foot controller to adjust the TIG current
