Product Description
Certification:ISO9001,CE,ROHS

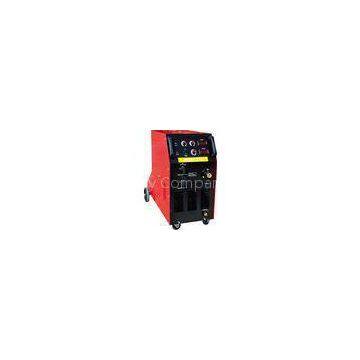

Compact style MIG welder MIG welding machine FNBC315
Description:
1) MIG/MAG/CO2 and with spot function
2) Single- Driving or dual- Driving wire feeding motor?is optioned
3) Arc ignition process smooth and fast
4) Stable welding current, Low welding splatter, smooth welding appearance
5) Compact structure,Diode- rectifying bridge, Aluminum Transformer
6) Welding voltage adjusted by two step switches
7)?Euro Style Central?Socket/Plug
8).AMP And?VOLT DIsplaying
9).Continuous welding current adjustment
10).Suitable for continuous, spot and space welding?
Specifications:
| Item | FNBC200/250-1 | FNBC250 | FNBC315 | FNBC350 |
| Input voltage(V) | 1*220/230/240V | 3*380/400/415V | 3*380/400/415V | 3*380/400/415V |
| Frequency(HZ) | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Input power capacity(KVA) | 5.0/7.0 | 9.8 | 14.2 | 15.5 |
| Current range(A) | 40-200/250A | 40-250A | 50-315A | 50-350A |
| Rated duty cycle(%) | 200/250A@35% | 250A@40% | 315A@40% | 350A@35% |
| Welding voltage(V) | 6/10 positions | 10 positions | 21 positions(3*7) | 21 positions(3*7) |
| Diameter of wires(MM) | 0.6,0.8,1.0MM | 0.8,1.0,1.2MM | 1.0,1.2,1.6MM | 1.0,1.2,1.6MM |
| Wire spool(MM) | 15KG/D 300MM | 15KG/D 300MM | 15KG/D 300MM | 15KG/D 300MM |
| Weight(KGS) | 68KGS | 78KGS | 88KGS | 90KGS |
Stand accessories:
1PC MB36AK MIG torch with 3M cable
1PC earth clamp 300A with 3M cable
