Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS

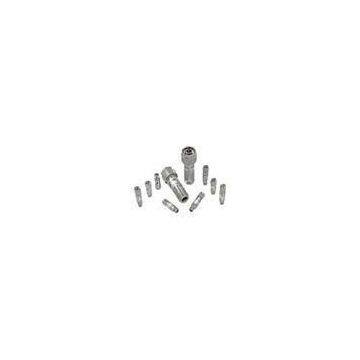

AV71514X ?series fix attenuators
General Description:
AV series fix attenuators have broad band. There are many types of connectors such as 1.85mm, 2.4mm, 3.5mm and type N. The attenuation includes 3dB, 6dB, 10dB, 20dB, 30dB, 40dB. We can design the new attenuators according to the need of customers.
Functional Diagram:
Specifications:
|
Model |
Attenuation |
Attenuation accuracy(dB) |
Frequency range(GHz) |
VSWR(Max) |
Max input power |
Connector type |
|
AV81550A |
6 |
±2.0 |
DC-67 |
2.0 |
1 |
1.85mm |
|
AV81550B |
10 |
|||||
|
AV71515 |
6 |
±1.5 |
DC-40 |
1.4 |
1 |
2.4mm |
|
AV71515A |
10 |
|||||
|
AV71515B |
20 |
|||||
|
AV71515C |
30 |
|||||
|
AV71514 |
3 |
±1.4 |
DC-26.5 |
1.25 |
2 |
3.5mm |
|
AV71514A |
6 |
|||||
|
AV71514B |
10 |
|||||
|
AV71514C |
20 |
|||||
|
AV71514D |
30 |
|||||
|
AV71514E |
40 |
±1.6 |
||||
|
AV71513 |
10 |
±0.8 |
DC-18 |
1.5 |
2 |
N |
|
AV71513A |
20 |
±1.0 |
||||
|
AV71513B |
30 |
±1.0 |
||||
|
AV71513C |
40 |
±1.5 |
||||
|
AV71512 |
10 |
±0.6 |
DC-12.4 |
1.3 |
2 |
N |
|
AV71512A |
20 |
±0.6 |
||||
|
AV71512B |
30 |
±0.8 |
||||
|
AV71512C |
40 |
±1.2 |
Typical Performance:?(Temperature= 25℃)
2.4mm series fix attenuators’?VSWR
2.4mm series fix attenuators’ attenuation accuracy
Absolute Maximum Ratings:
|
Min |
Max |
|
|
Input power |
-- |
1W/2W |
|
Operating temperature |
-20℃ |
+70℃ |
|
Storage temperature |
-40℃ |
+70℃ |
Outline Drawing:
Ordering Information:
|
Model |
Name |
|
AV81550A |
1.85mm6db Fix Attenuator |
|
AV81550B |
1.85mm10db Fix Attenuator |
|
AV71515 |
2.4mm6db Fix Attenuator |
|
AV71515A |
2.4mm10db Fix Attenuator |
|
AV71515B |
2.4mm20db Fix Attenuator |
|
AV71515C |
2.4mm30db Fix Attenuator |
