Home > Products > Microwave Components > AV81310 Power Divider Amplitude Balance 0.5 Frequency Range (GHz) DC - 24
AV81310 Power Divider Amplitude Balance 0.5 Frequency Range (GHz) DC - 24
US$ 4 - 5
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
AV81313 Power Divider Frequency Range DC - 50GHz
-
Portable Digital Oscilloscopes 7 Color Wide - Screen 800 480 resolution
-
7 inch LCD Touch Screen Frequency Domain Reflectometer / FDR
-
Multi - Functional Noise Figure Meter True color LCD for RF microwave measurement
-
Digital Modulation RF Signal Generators / High Frequency Signal Generator
-
RF Low Frequency Signal Generator Optional 1Hz ~ 1MHz With Completely Independent Software
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS

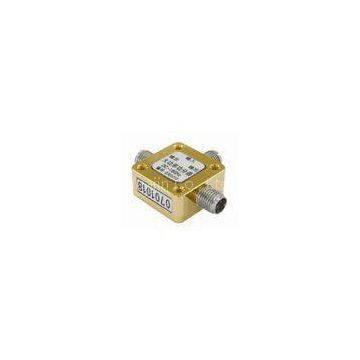

AV81310 Power Divider
Functional Diagram:
The input signal is divided into 2 signals with equal amplitude and phase signals by impedance transform. The resistance between two ways is 50 ohm, which causes 3dB energy loss. The theoretical insertion loss is 6dB.
Typical?Performance:?(Conditions: Ta= 25℃)
Absolute Maximum Ratings:
|
Min. |
Max. |
|
|
RF Input Power |
- |
27 dBm |
Port Descriptions:
|
RFc |
RFin, 3.5mm female, DC coupled |
|
RF1,RF2 |
RFout, 3.5mm female, DC coupled |
Outline Drawing:
AV81310 (Unit:?mm)
Ordering Information:
|
AV81310 Power Divider |
Power Divider Module |
Notes:
1. FAVORABLE HEAT DISSIPATION IS REQUIRED WHEN THE DIVIDERS WORK AT THE MAX RF INPUT POWER.
2. PROTECT THE CONNECTORS FROM STRIKING.
3. PRODUCT SPECIFICATIONS AND DESCRIPTIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE.?
