Home > Products > Microwave Components > Customized Microwave Coaxial Adaptors Frequency Up To 67GHz
Customized Microwave Coaxial Adaptors Frequency Up To 67GHz
- T/T L/C D/P D/A
- 7 days
You May Like
-
AV3211X Microwave Components 3.94 - 6GHz waveguide calibration kit
-
High Power 1mm Waveguide Directional Microwave Coupler with pinhole structures
-
2mm Waveguide High Directivity Directional Coupler >20dB
-
6mm Directional Coupler Waveguide Microwave Components 10dB or 20dB
-
CETC 41ST Microwave Components Serial 8mm Waveguide Directional Coupler
-
Female Microwave Components Dual RF high power directional Coupler
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS

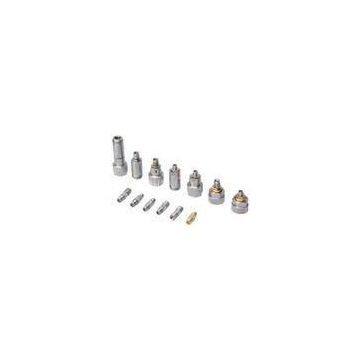

Microwave Coaxial Adaptors Frequency Up To 67GHz ? COAXIAL ADAPTORS
The adaptors can enable connection of a form port used in one frequency band to another form port used in another frequency band.
Specifications:(Temperature: 23℃±3℃)
|
Model |
Connector Type |
Frequency Range |
VSWR(Max) |
|
AV71101 |
N(f)-N(f) |
DC-18GHz |
1.083 |
|
AV71102 |
N(m)-N(m) |
DC - 18GHz |
1.083 |
|
AV71103 |
N(m)-7mm |
DC - 18GHz |
1.083 |
|
AV71104 |
N(f)-7mm |
DC - 18GHz |
1.083 |
|
AV81101 |
N(m)-N(f) |
DC - 18GHz |
1.083 |
|
AV81103 |
N75Ω(m)-N50Ω(f) |
DC -3GHz |
1.25 |
|
AV81103A |
N75Ω(m)-N50Ω(m) |
DC -3GHz |
1.25 |
|
AV81103B |
N75Ω(f)-N50Ω(m) |
DC -3GHz |
1.25 |
|
AV81103C |
N75Ω(f)-N50Ω(f) |
DC -3GHz |
1.25 |
|
AV81104 |
7/16(f)-N(f) |
DC -7.5GHz |
1.083 |
|
AV81104A |
7/16(f)-N(m) |
DC -7.5GHz |
1.083 |
|
AV81104B |
7/16(m)-N(f) |
DC -7.5GHz |
1.083 |
|
AV81104C |
7/16(m)-N(m) |
DC -7.5GHz |
1.083 |
|
AV71109 |
3.5mm(f)-3.5mm(f) |
DC - 26.5GHz |
1.106 |
|
AV71110 |
3.5mm(m)-3.5mm(m) |
DC - 26.5GHz |
1.106 |
|
AV71111 |
3.5mm(m)-3.5mm(f) |
DC - 26.5GHz |
1.106 |
|
AV71113 |
3.5mm(f)-7mm |
DC - 18GHz |
1.106 |
|
AV71114 |
3.5mm(m)-7mm |
DC -18GHz |
1.106 |
|
AV71115 |
3.5mm(m)-N(f) |
DC - 18GHz |
1.083 |
|
AV71116 |
3.5mm(m)-N(m) |
DC - 18GHz |
1.083 |
|
AV71117 |
3.5mm(f)-N(m) |
DC - 18GHz |
1.083 |
|
AV71118 |
3.5mm(f)-N(f) |
DC - 18GHz |
1.083 |
|
AV71119 |
2.4mm(m)-2.4mm(m) |
DC - 40GHz |
1.12 |
|
AV71120 |
2.4mm(f)-2.4mm(f) |
DC - 40GHz |
1.12 |
|
AV71121 |
2.4mm(m)-2.4mm(f) |
DC - 40GHz |
1.12 |
|
AV71122 |
2.4mm(m)-3.5mm(m) |
DC - 26.5GHz |
1.15 |
|
AV71123 |
2.4mm(m)-3.5mm(f) |
DC - 26.5GHz |
1.15 |
|
AV71124 |
2.4mm(f)-3.5mm(m) |
DC - 26.5GHz |
1.15 |
|
Model |
Connector Type |
