Lightweight Optical Time Domain Reflectometer 1.6m Extra - Short Event Dead Zone
US$ 4 - 5
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Distributed Optical Fiber Strain Tester OTDR Fiber Tester Visual Fault Locator AV6419
-
GPIB interface Programmable Optical Attenuator Wide Wavelength Range 1200 1650nm
-
AV6471 Fiber Optic Fusion Splicer 2.8kg With Battery / CMOS sensor
-
FTTH Optical Fiber Fusion Splicer Small AV6471A With USB and VGA ports
-
TFT LCD Microwave Portable RF Signal Generator Rechargeable battery
-
High Power Output Signal Generators Large Dynamic Range With GPIB and LAN interfaces
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS

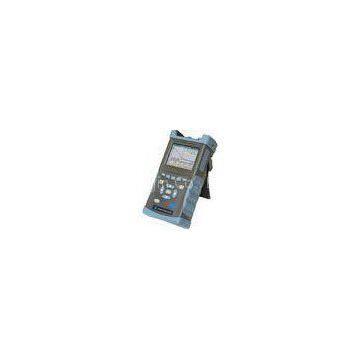

AV6416 Palm Optical Time Domain Reflectometer 1.6m Extra - Short Event Dead Zone
Product Summaries:
??? AV6416 palm OTDR is the newest instrument designed for testing FTTx network. It′s mainly used to measure the physical characteristics of optical fiber under test, such as the length,the transmission loss and the splice loss etc.. It can also locate the faults or breaks of optical fiber. It′s widely applied in the manufacture, construction and maintenance in optical fiber communication system.
??? AV6416 palm OTDR has the most advanced technology of double-color & material integrative mould,which is novel and beautiful in appearance.AV6416 offers three wavelengths and VLF in one handheld unit, especially for testing passive optical network (PON) in FTTx. In addition, it′s equipped with comfortable gallus for carrying conveniently.?
Mainly features:
??? ο handheld,lightweight and convenience for carrying
??? ο The most advanced technology of double-color & material integrative mould in trade
??? ο Advanced anti-reflective TFT LCD,visible clearly in field
??? ο?1.6m extra-short event dead zone
??? ο?Communication light check automatically
??? ο?0.25m high resolution,65534 sampling points
??? ο?Fast auto measurement,one-button operating
??? ο?Double USB interfaces, supporting USB stick and direct cable download to PC via ActiveSync
??? ο?Supporting Bellcore GR196 file format in writing or reading
??? ο?Function of intelligent indicating of remaining capacity of battery and warning if the voltage of battery is low.
??? ο??WinCE operation system, double operating interface of Chinese and English
??? ο?Built-in lithium battery with high capacity for over 10 hours of operating life
??? ο?Visible fault locating (VFL)
??? ο?Universal FC/PC,FC/SC,FC/ST connector type, it′s convenient for surface cleaning
??? ο?Unique function of updating system on-line, returning to factory is unnecessary?
Specifications
|
Main Specifications
|
||||
|
Main OTDR Modules
|
2101
|
2103
|
3105
|
3102
|
|
Center wavelength
|
1310nm/1550nm
±20nm
|
1550nm/1625nm
±20nm
(build-in filter)
|
1310nm/1550nm/1490nm±20nm
|
1310/1550nm/ 1625nm ±10nm
(build-in filter)
|
|
Type of optical fiber
|
SMF
|
SMF
|
SMF
|
SMF
|
|
Dynamic Range1
|
28 / 26dB
|
26 / 26dB
|
28 / 26 / 24dB
|
28 / 26 / 25
|
|
Distance Measurement Accuracy
|
±(1m + sample space + measurement distance×0.003%)
|
|||
|
Event Dead Zone2
|
≤1.6m
|
|||
|
Sampling Resolution
|
0.25 , 0.5 , 1 , 2 , 4 , 8 , 16m
|
|||
|
Distance Range
|
0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256km
|
|||
|
Pulse width
|
10 , 30 , 80 , 160 , 320 , 640 , 1280 , 5120 , 10240ns
|
|||
|
Loss threshold
|
0.01dB
|
|||
|
Sampling points
|
Up to 65k
|
|||
|
Linearity
|
0.05dB/dB
|
|||
|
Memory capacity
|
800 traces
|
|||
|
Group refractive index setting
|
1.00000 - 2.00000 (0.00001 steps)
|
|||
|
Display
|
Color LCD(touch screen)
|
|||
|
Interface
|
USB,Min-USB
|
|||
|
Optical Connector
|
FC/UPC (universal connector)
|
|||
|
VFL
|
650nm ± 10nm,2mW(typical);CW/1Hz
|
