Dual - Channel Microwave Power Meter / Universal Power Meter

FOB Price

US$ 4 - 5 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

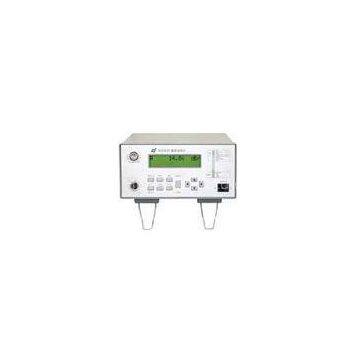

Dual - Channel ?Microwave Power Meter / Universal Power Meter

AV2432/2433 Microwave Power Meter
?

The AV2432 power meter?is a new generation diode detectors′ universal power meter, which based on DSP technology. With built-in 50MHz power sweep calibrator, it can trace standard of power and automatically calibrate the amplitude response of a power Probe. The AV2432 universal power meter can achieve accurate measurements of average power of continuous wave and the RF power lever of a pulse modulated signal. Power Probes′ calibrate and power lever′s measurements of signal can be reached by operated the front panel manually or controlled through GPIB interface of the rear panel.?

?The AV2433?is a dual-channel (channels: A, B) universal power meter designed specifically for Automatic Test Equipment (ATE) system. It can configure two AV23200 series power Probes, which can accurate measure the power of continuous wave or pulse modulated inputted from the two channels, and the results display on the LCD. It has A, B, A/B, B/A, A-B, B-A testing mode, and has functions of measuring the microwave elements or components′ Return Loss/SWR by configured specifically Directional Bridge, and also has all functions of the AV2432 universal power meter. It is economical and high-performance.

Specifications for AV2432 and AV2433
Frequency range:10MHz～110GHz(depend on the kind of? the configured probe)	Power Range:-70dBm～+50dBm
Zero Configuration:±100pW	Display Resolution:Logarithm? ode1～0.001dB,? Linear Mode: 1-4 bits
Power Sweep Calibration Source
Frequency Accuracy:? ±1.5%	Power Accuracy: ±1.9% (when tracing back to power accuracy ±0.5% The power accuracy of standard calibration can be better than ±1.2%)	power Dynamic Range: -30dBm～+20dBm
Dimensions:DWH=37022090(mm)
Weight:5kg

Specifications of AV23200 Series
Standard Continuous Wave Power Sensor
Model	Frequency range Power Range	Max. Power	Power Linearity	VSWR	input connector form
AV23211	10MHz～18GHz? 60dBm～+20dBm	+23dBm	-20dBm～+20dBm: ±0.05dB/10dB Else: 0.00dB	10MHz～2GHz:1.12 2GHz～12.4GHz: 1.22 12.4GHz～18GHz:1.29	N(m)
AV23212	26.5GHz～40GHz -50dBm～+20dBm	+25dBm	-20dBm～+20dBm: ±0.09dB/10dB? Else: 0.00dB	1.4	input connector:? W2-28 UG-599 calibration onnector:N(m)
AV23215	50MHz～26.5GHz -60dBm～+20dBm	+23dBm	-20dBm～+20dBm:? ±0.05dB/10dB? Other: 0.00dB	50MHz～2GHz:1.12 2GHz～12.4GHz:1.22 12.4GHz～18GHz:1.38 18GHz～26.5GHz:1.43	3.5mm(m)
AV23217	50MHz～40GHz -60dBm～+18dBm	+20dBm	-20dBm～+20dBm:? ±0.09dB/10dB? Other: 0.00dB	50MHz～2GHz:1.12 2GHz～12.4GHz:1.22 12.4GHz～18GHz:1.38 18GHz～26.5GHz:1.43 26.5GHz～40GHz:1.89	2.4mm(m)
