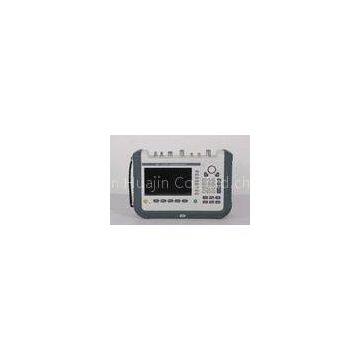

AV4958 Multifunctional Microwave Analyzer

Product Overview

AV4958 Multifunctional Microwave Analyzer integrates multiple functions like testing of cable and antenna VSWR, distance to fault(DTF), insertion loss and gain, spectrum analysis and power measurement, etc. It is flexible and convenient to carry. Battery is available for power supply so it is suitable for field testing. Used widely in several fields including field installation and tuning of electronic equipment in terms of radar, communication and ECM, performance test, daily maintenance and emergent repair and test, the analyzer can help upgrade filed repair and support of users.? ?

High performance

Frequency range of feeder test is 1MHz～20GHz, frequency resolution is 10Hz；

Frequency range of network analysis is 1MHz～20GHz, frequency resolution is 10Hz, dynamic range is 80dB～95dB;

Frequency range of spectrum analysis is 100KHz～20GHzm, sideband noise is -105dBc/Hz@1MHz(1GHz carrier)；

Flexibility

Small and light with built-in battery, provides easy field operation;

Perfect auto diagnosis and auto status testing;

Intelligent power management, indication of remaining capacity and lower battery warning;

Friendly man-analyzer interface:

Chinese and English menu with instructions and help info;

7-inch high-brightness true-color TFT LCD,good visibility even under direct sunlight;

Universal interface

External input bias T is available, provides supply for active DUT;

Two types of USB2.0 interface, for connection of portable storage device and communication with PC;

One 100M network interface, for construction of local network or remote control;
