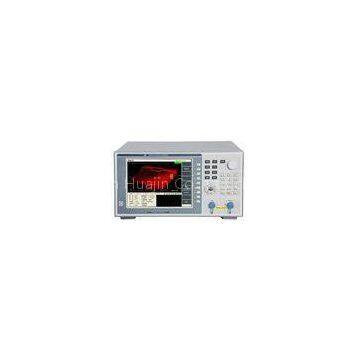

Distributed Optical Fiber Strain Tester OTDR Fiber Tester Visual Fault Locator AV6419

Product Summaries

AV6419 distributed optical fiber strain tester can measure strain distribution, loss distribution and Brillouin scattering spectrum at different location of optical fiber simultaneously, and can display 3D traces and multiple distribution parameters. It has the advantages of high strain measurement accuracy, good measurement repeatability, non-destructive measurement via one end, and it has become the indispensable instrument in the field of optical fiber communication and optical fiber sensor (OFS).?

AV6419 is used widely in the fields of health monitoring of bridge building, dam, tunnel, lofty building, oil well platform and oil pipeline, and also in the fields of forecasting of geological hazard, such as mountain landslide, mud-rock flow and earthquake, and the fields of the intelligent structure monitoring of seaborne naval vessels and aviation aerospace.?
AV6419 is also used to measuring the strain distribution of optical fiber loop or subsea optical cable in process of development, production and maintaining of fiber-optic gyroscope (OFG) , optical fiber hydrophone and subsea optical cable.

?Main Features

??ο nondestructive measurement through single-end
??ο Distribution measurement of Brillouin scattering spectrum width
??ο Distribution measurement of optical fiber strain
??ο Distribution measurement of optical fiber loss
??ο Measurement of Brillouin scattering spectrum
??ο Display multiple distribution traces simultaneously
??ο 3D display of loss distribution
??ο Large screen color LCD display, touch screen operation
??ο Built-in visual fault locator (VFL)
??ο System software on-line updating, no need to return to factory

General Specification

1. Pulse width 200ns, average times 216, frequency sweep range 200MHz, frequency sweep span 5MHz;?
2. Average times 216,frequency sweep range 200MHz, frequency sweep span 5MHz;

?Accessories
