Wall Mount 150 Detection Angle Microwave Motion Sensor , Hold Time 10s / 30s
- T/T L/C D/P D/A
- 7 days
You May Like
-
Unique 15M Range Microwave Motion Sensor With 4 - Pole Press - In Terminal
-
Balcony Light Microwave Motion Sensor 5.8GHz 75MHz , ISM Wave Band
-
Small Microwave Motion Sensor MC008S E With 4 - Pole Press - In Terminal ( L , N , N , L )
-
Temperature Control ON-OFF Microwave Motion Sensor 400 Watt 82x36.5x 25.5 mm
-
Dry Contact Detector / Microwave Motion Sensors Easy Assembly , Guaranty 5 Years
-
12v DC Microwave Ceiling Mount 360 Degree Motion Sensor For Hotel Management System
Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | MC001S |
Product Description
Certification:CE

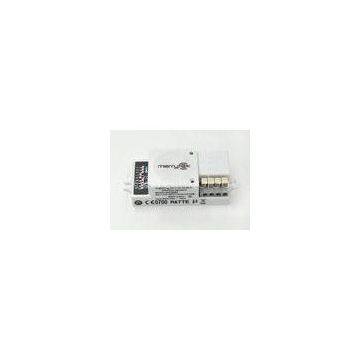

5.8G 220-240Vac Input ON-OFF Microwave Motion Sensor MC001S with CE approval
Description:
1.?Automatic switching based on motion and ambient light level.
2. 4-pole press-in terminal (L, N, N,L′),easy assembly.
3.?5.8GHz high frequency microwave(C-Band license-free operation)
4.?Zero-crossing point operation helps protect the sensor against in-rush current.
5. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
6.?MC001S is an innovative motion sensor, supplies a simple energy-saving solution to use light only when and where you need it. It automatically switches on/off light based on motion and ambient light level.? 4-pole press-in terminal (L, N,N, L\'), very easy to install.
Function:
ON-OFF function?
Detection Pattern:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
400W (inductive), 1000W (resistive) |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 8m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-30℃~70℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
25％/50％/75％/100％ |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Wiring:
Applications:
Stairwell, Corridor, Balcony, Pathway, etc
