Home > Products > Welding Manipulators > Heavy Duty Welding Manipulators Column Boom For Pressure Vessel Welding

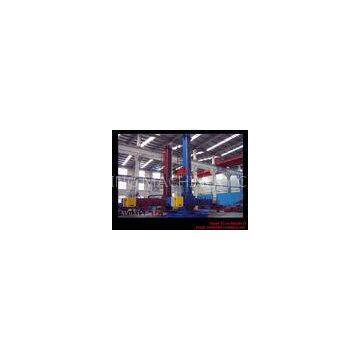

Heavy Duty Welding Manipulators Column Boom For Pressure Vessel Welding
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Weld Column And Boom Welding Manipulators 7 * 7m Stationary Type With Flux And Recycle Unit
-
Wind Tower Assembly And Fit Up Welding Turning Rolls / Turning Bed Rotator with PU Roller
-
80 Ton Full-Automatic VFD Control Pipe Welding Rotators For Cylinder Seam Welding
-
Self-adjustable Welding Turning Rolls / 100Ton Self-aligned Welding Roller for Pipe Welding
-
Self Aligning Pipe Welding Rotator / Self-alignment Tank Turning Rolls for Vessel Welding
-
Movable 2T - 60T Welding Turning Rolls / Pipe Rotators / Tank Turning Roll 60000kg
Product Details
| Brand Name | H-WELDING | Place of Origin | China | |
| Model Number | LH7070 |
Product Description
Certification:CE
Heavy Duty 7000*7000mm Welding Column & boom For Pressure Vessel Welding
Specifications:
1-trolley ,2-column revolve unit,3-column,4-flux feeding and recovery system ,5-guide saddle,6-elevating unit,7-boom,8-welding system
|
Technical parameter |
LHC5050 |
LHC6060 |
LHC7070 |
LHC8080 |
|
Elevating stroke mm |
5000 |
6000 |
7000 |
8000 |
|
Retracting stroke mm |
5000 |
6000 |
7000 |
8000 |
|
Elevating speed mm/min |
1650 |
|||
|
Retracting speed mm/min |
50-1000 |
|||
|
Minimum distance between boom and track surface mm |
1290 movable with revolve |
1210 stationary with revolve |
||
|
Boom end maximum weight loading kg |
400 |
500 |
600 |
|
|
Column revolving |
Angle |
＋180o |
||
|
Speed rpm |
0.17rpm/or by manual |
|||
|
Trolley traveling speed mm/min |
2000 |
|||
|
Inner span of trolley rail mm |
2500 |
Description:
Boom retraction motor speed system adopts inverter for speed adjustment, which has function of low frequency high torque, rotation difference compensation function, over loading, over current and short circuit protection, and with the function of alarm output, high start torque and control precision and stable performance.Applications:
Column and boom welding machine is the automatic welding equipment composed together with welding power. Widely used in industries as boiler, pressure vessel, petro-chemical machineryCompetitive Advantage:
Main electric elements are Schneider. Inverter: T-verter or Schneider.Contact Us
