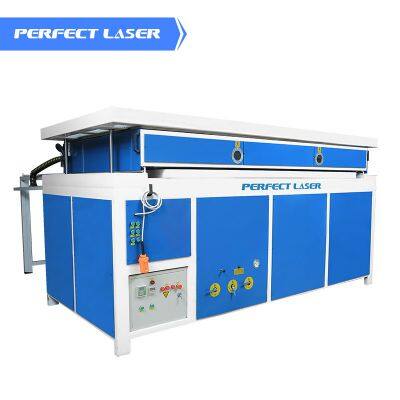

Perfect Laser hot selling blister vacuum acrylic forming machine for sale

Product Introduction

The  vacuum forming molding machine is used to make 2-3mm acrylic into flat,  curved, and spherical characters, fonts, and light boxes. The large  vacuum forming machine consists of a starting balance device, a vacuum  pump, 8 air cylinders, and 12 heating tubes.

The vacuum molding machine supports three processing modes: single suction, single pressure and simultaneous suction pressure. Different modes can bring different forming effects.

Product Features

1. The  upper and lower tables of the vacuum molding machine are made of square  steel, and the main fixture is made up of 63 channel steel, it is  strong, and won’t get deforming. The fixture is adjustable, and can  support customization.

2.  The upper table and the lower table of large vacuum forming machine are  controlled by 4 cylinders separately. The upper table can be raised by  700mm and the lower table can be sunken by 300mm, providing the space  required for the production of light boxes.

3.  This vacuum molding machine is equipped with a temperature controller.  After setting the heating temperature, 12 high-power heating tubes can  quickly soften the acrylic and plastics sheet. The large vacuum forming  machine is also equipped with a timer, it can set different heating  times according to the thickness of materials and ambient temperature.

4.  The vacuum molding machine support 3 processing modes. The single  suction mode only needs to customize the male-mold, and the processed  corners are rounded; the single pressure mode and the simultaneous  pressure suction mode need to customize the female-mold and male-mold at  the same time, and makes the characters more vividly.

5.  The body of vacuum forming molding machine is equipped with 3 suction  holes. There is no need to open 3 holes at one time, the corresponding  suction holes can be opened according to the processing format, and it  can save much energy when forming.

6. It adopts starting balance device to ensure the smooth running of the machine.

7.  The vacuum forming molding machine adopts a remote control handle and  simple operation. There are no special requirements for the operator,  and user can get started with a little training.

8.  The three-phase power supply of the vacuum forming machine for sale is  equipped with special indicator lights, it’s convenient for observing  when the phase is missing.

Application

Applicable material : This large vacuum forming molding machine is suitable for acrylic and many other plastics.

Applicable industry: It is widely used for the production of various flat, curved, and spherical characters, fonts, and light boxes for advertising industry.

Technical Data
