Home > Products > Genesis LED Chip > Genesis 5W High Power LED 80 CRI 3000K Warm White For LED Bulb
Genesis 5W High Power LED 80 CRI 3000K Warm White For LED Bulb
- 0 Meter / Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
200Lm Signle Chip 3W High Power LED Module , Integrated LED Light Source
-
3 Watt 4000K - 4500K Bridgelux COB LED Module 100 - 110 lm/w For LED Bulb
-
80 Ra High Power COB LED Module 5W 5000K Natural White Bridgelux Chip
-
High Efficiency 5 Watt 100 Lm/W COB LED Module 120 degree 80 CRI
-
Energy Saving 120Lm 3W High Power LED , 45mil Epistar LED Chip
-
Bridgelux 3W COB LED 130 lm/W For Stage Light , LED Light Source
Product Details
| Brand Name | Lepower | Place of Origin | China | |
| Model Number | 1215-6 |
Product Description
Certification:CE|RoHS

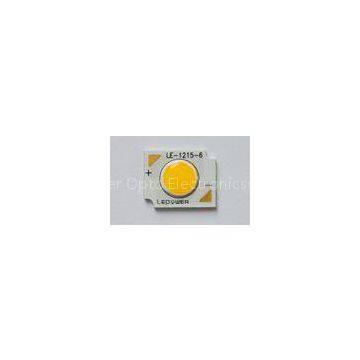

Genesis 5W COB led for spotlight (COB 1215 )
Quick Detail:
5W power consumption COB package, 12mmx15mmx1mm, D7.5mm Genesis LED chip, chip material InGaN High light efficiency 95-105 lm/W, Ra>80 9-11V input voltage, 350mA current 2800-6500K available CE, RoHS compliance 2 years warrantyGenesis 5W High Power LED 80 CRI 3000K Warm White For LED Bulb
Description:
?
?
Applications:
?
Specifications:
?
Package Dimension
?
Characteristics(Ta=25°C)
?
|
Characteristics |
Unit |
Minimum |
Typical |
Maximum |
|
Reverse current |
mA |
-- |
--- |
0.1 |
|
Junction-to-base thermal resistance |
°C/W |
-- |
1 |
-- |
|
LED Junction Temperature |
°C |
-- |
--- |
120 |
|
Viewing angle |
degrees |
-- |
120 |
-- |
|
Ra |
CRI |
80 |
-- |
-- |
|
R9 |
/ |
-- |
10 |
-- |
|
POWER |
CCT(K) |
BIN code |
Part ?NO. |
Typical |
||
| IF(mA) |
VF(V) |
Lm/w |
||||
|
5W |
2800-3000 |
WD |
LY-IC320805T1428-80 |
550 |
9 |
95 |
| 4000-4500 |
NB |
LY-NC320805T1428-80 |
550 |
9 |
105 |
|
| 5000-5500 |
CH |
LY-CC320805T1428-80 |
550 |
9 |
105 |
Competitive Advantage:
?
?
Shenzhen Lepower Opto Electronics Co., Ltd. was founded in 2005. Our company is a wholly owned subsidiary of Liyang Electronics (HK) Limited. We are state-level key high-tech enterprise mainly engaged in developing, producing and selling the high power LEDs and LED lighting applications.?
We are committed to the research and development and industrial production of high brightness, lower energy consumption, long time span, good stability and high reliability high power LED
We offer services with
