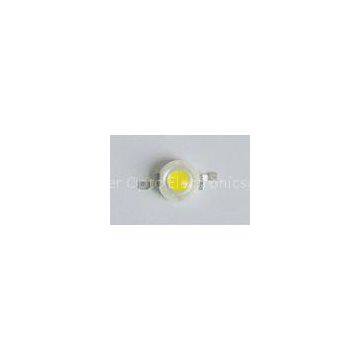

45mil Bridgelux 3W High Powered LED Natural White For Spotlight
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
50W - 180W Highways Bridgelux LED High Bay Light 10000Lm With CE Approved
-
High Efficiency Outdoor LED Street Lights 5000K 150W 18000lm Modular IP66
-
Aluminum 150W Outdoor LED Street Lights white 5000K - 5500K CRI 70
-
300 Watt COB High Power LED Module 33000lm Nature White For Outdoor Lighting
-
200W High Bay Bridgelux LED outdoor lighting120lm/W for Stadium Lighting
-
IP66 90W LED High Bay Light With 5000K 70 CRI 120lm/W for Gas Station
Product Details
| Brand Name | Lepower | Place of Origin | China | |
| Model Number | 1W/3W |
Product Description
Certification:CE, RoHS, EN62471
Bridgelux 45mil 220lm 3W high power led module for street light
Quick Detail:
3W consumption Single chip package, high light efficiency Bridgelux led chip3.4-3.6V, 550mA, up to 220lm Size: D8mm*L14.2mm Warm white/Neutral white/Cool white optional CE, RoHS, EN62471 compliance 2 years warranty45mil Bridgelux 3W High Power LED Natural White For Street Light
Description:
Exclusive package design, Super high lumens light source Several led chips available, easy selection with your goal. Different beam angle lens available, easy control your lightApplications:
Spotlight Down lignt Bulb Stage light Street lightSpecifications:
Dimension
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
|
Luminous Flux |
Φ |
IF=550mA |
190 |
-- |
210 |
lm |
|
Color Rendering Index |
CRI |
IF=550mA |
70 |
Ra |
||
|
Color Temperature/ Color coordinates |
CCT |
IF=550mA |
2800 |
-- |
3000 |
K |
|
Forward Voltage |
VF |
IF=550mA |
3.2 |
-- |
3.4 |
V |
|
Luminous efficiency |
Φ |
IF=550mA |
110 |
-- |
120 |
Lm/W |
|
Thermal Resistance Junction To Board? |
RΘJ-B |
IF=550mA |
? ? |
2 |
? ? |
°C/W |
|
Reverse Current |
IR |
VR=17V |
? ? |
? ? |
2 |
μA |
|
Viewing Angle [1] |
2Θ1/2 |
IF=550mA |
? ? |
130 |
? ? |
Deg |
Absolute Maximum Rating(At TA=25°C)
|
Parameter |
Symbol |
Ratings |
Units |
|
Power Dissipation |
PD |
1 |
W |
|
Continuous Forward Current |
IF |
550 |
mA |
|
LED Junction Temperature |
TJ |
120 |
°C |
|
Reverse Voltage |
VR |
5 |
