2800K - 6500K 12 Watt COB LED , Par 20 LED Light Source

Brand Name	Lepower		Place of Origin	China
Model Number	1616-9

Delivery Time:5-10 days
Certification:CE|RoHS

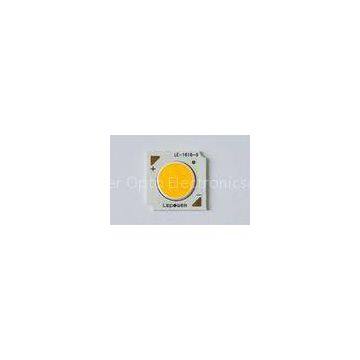

Bridgelux 12W COB led for spotlight (COB 1616 )

Quick Detail:

12W power consumption COB package, Size 16mmx16mmx1mm, D10mm Bridgelux LED chip, chip material InGaN High light efficiency 100-110lm/W, Ra>80 9-11V/24-26V/36-38V input voltage, 350mA/550 current 2800-6500K available CE, RoHS compliance 2 years warranty

2800K - 6500K 12 Watt COB LED , Par 20 LED Light Source

Description:

High quality imported aluminum led base, super reliability Bridgelux led chip, Shin-Etsu silicon gel, good performance High light efficiency, high CRI Good heat dissipation, low thermal resistance Mature technique, no light spot, no dizzy light. 10mm lighting dimension, suitable for spotlight or down light. Match with Lepower exclusive lens, get higher transmittance

Applications:

Spotlight Down light Par 20

Specifications:

Package Dimension

Characteristics (Ta=25°C)

Characteristics	Unit	Minimum	Typical	Maximum
Reverse current	mA	--	---	0.1
Junction-to-base thermal resistance	°C/W	--	1	--
LED Junction Temperature	°C	--	---	120
Viewing angle	degrees	--	120	--
Ra	CRI	80	--	--
R9	/	--	10	--

The following tables provide different power characteristics for 1616-9 series COB LED.

POWER	CCT(K)	BIN code	Part NO.	Typical
IF(mA )	VF(V)	Lm/w
12W	2800-3000	WD	LY-IC321202B3333-80	350	36	100
4000-4500	NB	LY-NC321202B3333-80	350	36	105
5000-5500	CH	LY-CC321202B3333-80	350	36	105

NOTE:

Lepower maintains a tolerance of ±7% on flux and power measurements. Tolerance: lm/w ±3%, λd ±2nm, Vf ±0.1V Flux values @25°C are calculated and for reference only.

Competitive Advantage:

Imported aluminum led base, more reliable than ordinary aluminum material. Exclusive Bridgelux 33mil high brightness led chip. 1.2mil 99.99% gold wire, without any problem with wires. World’s top brand materials and mature technique ensure outstanding quality.
