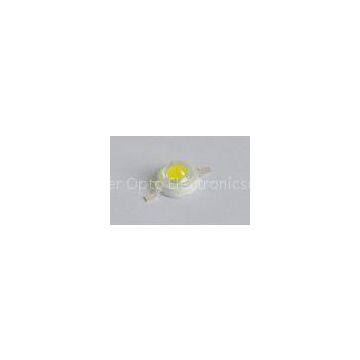

130LM 1W High Power LED Warm White , 3.4V 550mA Bridgelux LED Diode
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
RoHS Approved LED High Bay Light 150W For Bridges Lighting
-
8 Watt 900Lm Bridgelux COB LED 130 degree 80 CRI With CE Approved
-
Bridgelux LED Module 60W 5000K Natural White Flood Light LED Module
-
150W Outdoor LED High Bay Light 38 degree 110 - 130LM/W Cool White
-
IP65 80W Outdoor LED Street Lights , Railway Tunnels Lighting
-
High Light Efficiency Outdoor LED Street Light 135-155lm/w Led Street Light Module 20W - 30W
Product Details
| Brand Name | Lepower | Place of Origin | China | |
| Model Number | 1W/3W |
Product Description
Certification:CE, RoHS, EN62471
Bridgelux 45mil 130lm 1W high power led module for outdoor lighting
Quick Detail:
1W power consumption Single chip package, high light efficiency Bridgelux led chip,3.2-3.4V, 320mA, up to 130lm/W Size: D8mm*L14.2mm Warm white/Neutral white/Cool white optional CE, RoHS, EN62471 compliance 2 years warranty130LM 1W High Power LED Warm White , 3.4V 550mA Bridgelux LED Diode
?
Description:
Applications:
?
Specifications:
Dimension
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
|
Luminous Flux |
Φ |
IF=320mA |
120 |
-- |
130 |
lm |
|
Color Rendering Index |
CRI |
IF=320mA |
70-- |
75 |
Ra |
|
|
Color Temperature/ Color coordinates |
CCT |
IF=320mA |
2800 |
-- |
3000 |
K |
|
Forward Voltage |
VF |
IF=320mA |
3.2 |
-- |
3.4 |
V |
|
Luminous efficiency |
Φ |
IF=320mA |
110 |
-- |
120 |
Lm/W |
|
Thermal Resistance Junction To Board? |
RΘJ-B |
IF=320mA |
? ? |
2 |
? ? |
°C/W |
|
Reverse Current |
IR |
VR=17V |
? ? |
? ? |
2 |
μA |
|
Viewing Angle [1] |
2Θ1/2 |
IF=320mA |
? ? |
130 |
? ? |
Deg |
Absolute Maximum Rating(At TA=25°C)
|
Parameter |
Symbol |
Ratings |
Units |
|
Power Dissipation |
PD |
1 |
W |
|
Continuous Forward Current |
IF |
350 |
mA |
|
LED Junction Temperature |
TJ |
120 |
°C |
|
Reverse Voltage |
VR |
