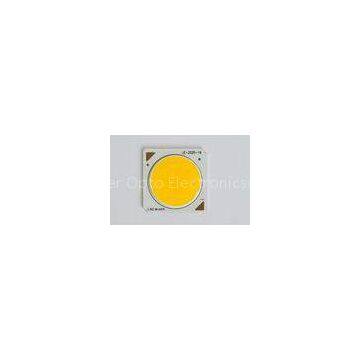

Bridgelux 18W COB LED Module 2800K - 6500K For Down Light

Brand Name	Lepower		Place of Origin	China
Model Number	2525-19

Delivery Time:5-10 days
Certification:CE|RoHS

Bridgelux 18W COB led (COB 2525 )

Quick Detail:

18W power consumption COB package, Size 25mmx25mmx1mm, D19mm Bridgelux LED chip, chip material InGaN High light efficiency 100-110lm/W, Ra>80 22-26V/36-42V input voltage, 450/520/700/850mA current 2800-6500K available CE, RoHS compliance 2 years warranty

Bridgelux 18W COB LED Module 2800K - 6500K For Down Light

Description:

High quality imported aluminum led base, super reliability Bridgelux led chip, Shin-Etsu silicon gel, good performance High light efficiency, high CRI Good heat dissipation, low thermal resistance Mature technique, no light spot, no dizzy light. 19mm lighting dimension, suitable for spotlight or down light. Match with Lepower exclusive lens, get higher transmittance

Applications:

Track light Tubular light Par light Down light

Specifications:

Package Dimension

Characteristics (Ta=25°C)

Characteristics	Unit	Minimum	Typical	Maximum
Reverse current	mA	--	---	0.1
Junction-to-base thermal resistance	°C/W	--	0.8	--
LED Junction Temperature	°C	--	---	120
Viewing angle	degrees	--	120	--
Ra	CRI	80	--	--
R9	/	--	10	--

The following tables provide different power characteristics for 3535-20 series COB LED.

POWER	CCT(K)	BIN code	Part NO.	Typical
IF(mA )	VF(V)	Lm/w
18W	2800-3000	WD	LY-IC301203B3333-80	520	36	100
4000-4500	NB	LY-NC301203B3333-80	520	36	105
5000-5500	CH	LY-CC301203B3333-80	520	36	105

NOTE:

Lepower maintains a tolerance of ±7% on flux and power measurements. Tolerance: lm/w ±3%, λd ±2nm, Vf ±0.1V Flux values @25°C are calculated and for reference only.

Competitive Advantage:

Imported aluminum led base, more reliable than ordinary aluminum material. Exclusive Bridgelux 33mil high brightness led chip. 1.2mil 99.99% gold wire, without any problem with wires. World’s top brand materials and mature technique ensure outstanding quality.
