Low RPM Magnetic Levitation Vertical Axis Wind Turbine For LED Street Lamp

FOB Price

Negotiable / Meter

1 Meter(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TYPMAR		Place of Origin	China
Model Number	CXF-300w , 600w , 1000w , 3000w

Product Description

Delivery Time:15 days
Certification:CE IEC ISO9001

?

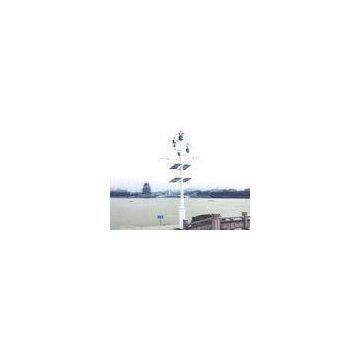

Low RPM Magnetic Levitation Vertical Axis Wind Turbine For LED Street Lamp
?
?
1. Quick Detail

Name :CXF-200w , 300w , 600w , 1000w , 3000w Vertical Axis Maglev Wind GeneratorApplications : Off grid, grid-tie, residential and commercial, street lights, telecoms BTS and etc.Colour:Red & blue, Sliver and customrized colour

?
2. Features

Magnetic levitation technologyIndependent of the direction of the windStartup at low wind speed of 1m/sHigher efficiency compared to traditional HAWTWorks even in turbulenceVisually pleasing appearanceTurbine construction is resistant to gale 60m/s (132MPH)Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steelDesign life: at least 20 yearsNoise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db

?
3. Technical Specifications
?

Items	CXF300	CXF600	CXF1000	CXF3000-Ⅰ	CXF3000-Ⅱ
Rated power	300W	600W	1000W	3000W	3000W
Dimension (Height/Diameter)	?1080/1240	?1320/1540	?2200/2400	3530/?3600	?4160/4570
Weight	27	50 kg	180 kg	415KG	680 kg
Blade material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Blade quantity	3	3	3	3	3
Swept area ㎡	0.76	1.27	3.6	7.02	7.72
Min starting wind speed	1m/s	1.3m/s	1.5 m/s	1．5m/s	1.5m/s
Cut-in wind speed	2.7 m/s	2 7m/s	3.5m/s	3．5m/s	3.5m/s
Rated wind speed	12m/s	12m/s	13m/s	13m/s	13m/s
Cut-off wind speed	15m/s	15m/s	15m/s	15m/s	15m/s
Survival wind speed	65m/s	65m/s	60m/s	60m/s	60m/s
Generator type	AC,3Phases	AC,3Phases	AC,3Phases	AC,3Phases	AC,3Phases
Controller Output Voltage	12V/24V	24V/48V	48V	48V	96V
Controller Braking System	3-phase short circuit by NFB brake	3-phase short circuit by NFB brake	3-phase short circuit by NFB brake	3-phase short circuit by NFB brake	3-phase short circuit by NFB brake
Ambient Temperature	-40～50 ℃	-40～50 ℃	-40～50 ℃	-40～50 ℃	-40～50 ℃
Noise	Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db

4. Applications

Off grid, grid-tie, residential and commercial, street lights, telecoms BTS and etc.

5. FAQ

?
a. Is Typmar a manufacturer or trading company?
?
We are a professional manufacturer, not a trading company. It’s TYPMAR who firstly invented maglev vertical axis wind turbine. We have USA patent (USD 647,477S ) and EU Patent (NO001721416-0001).
?
b. Is the maglev wind turbine expensive?
?
Yes, it is more expensive than HAWT because of solid and durable materials, but it has higher power effficiency and longer lifespan than HAWT.
?
c. What is benefits of VAWT in comparison to a traditional horizontal axis wind generators.

Magnetic levitation technologyIndependent of the direction of the windHigher efficiency than the propeller bladesWorks even in turbulenceVisually pleasing appearance and rotation of the bladesQuiet or almost minimal acoustic noiseMovement of the blades even in low wind speed of 1m/secTurbine construction is resistant to gale 60m/s (132MPH)Designed for mounting on mast, straight or saddle areaDesign: aluminum alloy, stainless steelDesign life: at
