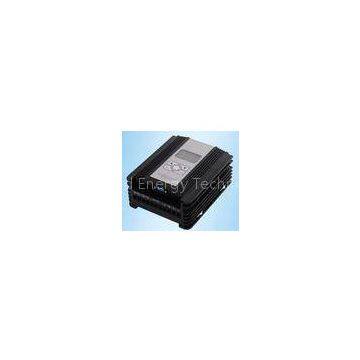

Super intelligent Wind Solar Hybrid Controller / Wind And Solar Hybrid Controller

Model??????

CXF600w-24V off-grid

CXF600W-48V off-grid

Battery parameters

Applied battery voltage

24V

Battery protect method

Reverse connection protection (do not burn any components, with voice prompt); over voltage protection, under voltage protection (for street light and such kind of load)

???? Voltage at the over voltage protection point

29.0V±0.2V

58.0V±0.3V

Voltage at the over voltage recovery point

27.5V±0.2V

55.0V±0.3V

?Voltage at the under voltage protection point

21.0V±0.2V

42.0V±0.3V

?Voltage at the under voltage? recovery point

23.0V±0.2V

46.0V±0.3V

Battery temperature compensation

5mv/℃/2V (settable) (optional component)

Wind turbines input parameters

Rated power of applied Wind turbines

600W/24V

600W/48V

Rated power of the terminal

30A dc (after rectification)

15A dc (after rectification)

Max. input current of the terminal

40A dc (after rectification)

20A dc (after rectification)

The default speed of the Wind turbines generation with limited speed

500 Rpm (settable)

The default current of the Wind turbines generation with limited current

30A (settable)

15A (settable)

Wind turbines protection method

over rev protection, over current protection, induction lightening protection

Unloading method

PWM stepless high-frequency soft unloading (built-in)

MPPT function

Boost MPPT model ( automatic tracking or 5 segments curve tracking)

Input current of MPPT channel

12A

PV input parameters

Rated input current of applied PV

550W/24V(standard)?
1100W/24V(ptional)

1100W/48V(standard)?
2000W/48V(ptional)

Rated input current of terminal

15A(standard)?????????
30A(optional)

Charging voltage drop

<0.2V

PV protection methods

Reverse connection protection (voice prompt)

Unloading method

Open circuit unloading
