Aluminum alloy 400W Maglev Wind Generator Domestic Hybrid PV System
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
VAWT Maglev Magnetic Levitation Wind Turbine 1000W Mount on Ground
-
Off Gird Maglev Wind Generator 600w 48V for Street Lighting System
-
3000W Magnetic Windmill Vertical Axis Wind Turbines For The Home
-
High Efficiency Maglev Wind Power Generator for 30W Camera System
-
300w Vertical Axis Wind Turbine Vawt Maglev Wind Generator for Home
-
High Stability Maglev Wind Generator 600w for Home Use with own patent
Product Details
| Brand Name | TYPMAR | Place of Origin | China | |
| Model Number | CXF-300-24V |
Product Description
Certification:CE, ISO9001
Aluminum alloy 400W Maglev Wind Generator Domestic Hybrid PV System
Quick Details
Startup at low wind speed of 1m/s Higher efficiency compared to traditional HAWT Works even in turbulence Visually pleasing appearance Turbine construction is resistant to gale 60m/s (132MPH) Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel Life span: at least 20 yearsDescription
Do you want to benefits from Maglev Wind Generator ,PV Hybrid Power Lamp System?
TYPMAR maglev wind generator have 3?models, 200W, 300W, 400W for lamp application system.

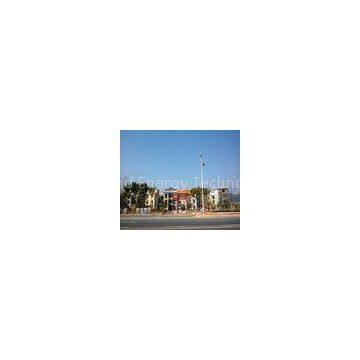

For the lamp?system power supplying renewable energy, it is??a project in south China (average wind speed 3m/s ).?The installation place is a historic reservation site. Total 600?lamps?installed.
Generally the configuration as below:
Maglev wind generator : 300W, 24V 1?sets
Solar Panel : 120W,24V 2?pcs
Camera : 50W,24V 1?pcs for roadway ,and 25W 24V 1 pcs for the pavement.
Tower : 7.2?m
Gel Batteries : 200AH, 2?pcs
Specification:
|
Maglev wind generator |
|||||
| Type | CXF200 | CXF300 | CXF600 | CXF1000 | CXF3000 |
| Rated Power | 200W | 300W | 600W | 1000W | 3000W |
| Size(Height / Diameter) | 1035/1150mm | 1090/1240mm | 1320/1540mm | 2200/2400mm | 4200/4570mm |
| Turbine Weight | 22.5KG | 31KG | 49KG | 180KG | 715KG |
| Blades Material | Aluminum alloy | Aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| Blades Qty. | 3 | 3 | 3 | 3 | 3 |
|
Start-up wind speed |
1m/s | 1.3m/s | 1.3m/s | 1.5m/s | 1.5m/s |
|
Cut in wind speed |
2m/s | 3m/s | 3m/s | 5m/s, 3.5m/s | 3.5m/s |
| Rated Wind Speed | 13m/s | 12m/s | 13m/s | 13m/s | 13m/s |
| Cut out Wind Speed | 16m/s | 15m/s | 15m/s | 15m/s | 15m/s |
| Survival Wind Speed | 60m/s | 65m/s | 65m/s | 60m/s | 60m/s |
| Generator Type | AC,3 phases | AC,3 phases | AC,3 phases | AC,3 phases | AC,3 phases |
| Controller output voltage | DC12V | DC24V/12V | DC24V/12V/48V | DC48V/24V | DC48/96V |
| Controller output current | <12Amp | <20Amp | <30Amp | <50Amp | <130Amp |
| Controller braking system |
3-Phase /short circuit protection/ NFB/ Manual break or automatic brake optional |
||||
| Ambient Temperature | -30～50 ℃ | -40～50 ℃ | -40～50 ℃ | -40～50 ℃ |
-40～50 ℃ |
Advantages
| Rated power | Approx. 300Wh at 13 m/s (26 mph) |
| Swept Area | 0.8 m2 |
| Height / Diameter | 1.23/1.09 m |
| Weight | 27 kg |
| Shipping Dimensions | 1160 x 520 x 790 mm 56 kg |
| Startup Wind Speed | 1 m/s (2.6 mph) |
| Voltage | 12, and 24 V AC |
| Turbine Controller | Smart Wind $ solar hybrid controller |
| Body | Permanent mold cast aluminum |
| Blades | (7) Injection-molded aluminum |
| Alternator | Permanent maglev generator |
| Overspeed Protection | 3 phases short-circuit braking control |
| Survival Wind Speed | 65m/s |
| Mount | Inner diameter 80MM 140mm outer diameter |
| Wind Speed Operating Range | 1-15 m/s (8-49 mph) |
| Optimum Wind Speed Range (RPM) | 8-10 m/s ( 750-800RPM) |
