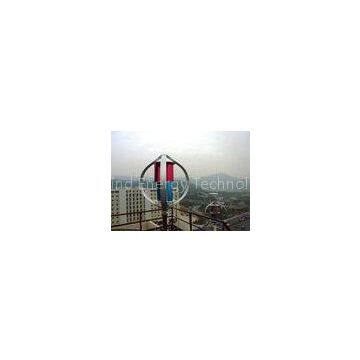

Roof Mounted Maglev Vertical Axis Wind Turbine Magnetic Levitation Generator

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TYPMAR		Place of Origin	China
Model Number	CXF-600

Product Description

Delivery Time:15 working days
Certification:CE ISO9001 IEC

Roof Mounted Maglev Vertical Axis Wind Turbine Magnetic Levitation Generator

1. Brief to 600w wind turbine

The CXF series of vertical axis maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.

Items	CXF600
Rated power	600W
Dimension (Height/Diameter)	?1540mm / 1320mm
Weight	50 kg
Blade material	Aluminum Alloy
Blade quantity	7 (3 Darrieusand 4 Savonius)
Swept area ㎡	0.30
Min starting wind speed	1.3 m/s
Cut-in wind speed	3.5m/s
Rated wind speed	13m/s
Cut-off wind speed	15m/s
Survival wind speed	60m/s
Generator type	AC,3Phases
Controller Output Voltage	24V/48V
Controller Braking System	3-phase short circuit by NFB brake
Ambient Temperature	-40～50 ℃
Noise	Less than 40dB
Annual Energy Production (@ 5 m/s wind speed )	about 1500 kWh

2. Feature:

Magnetic levitation technology Independent of the direction of the wind Startup at low wind speed of 1m/s Higher efficiency compared to traditional HAWT Works even in turbulence Visually pleasing appearance Turbine construction is resistant to gale 60m/s (132MPH) Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel Design life: at least 20 years Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db

3. Application :

The 600w wind turbine, 24V and 48V for option, is ideal for both of residential and commercial applications as well as off grid and on grid power systems. The unit provides a durable, reliable, and fully customized hybrid solution to Telecoms Base Receiver Station (BTS), Charging Station by Solar and wind and also very suitable for power supply to home.
