Professional Automatic Vertical Drilling Machine / electric drilling machine
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Precision Micro feed Vertical Drilling Machine with Drill chuck and arbor
-
Positive spindle lock drilling machine 2.8KW ,automatic drilling machine
-
2.8KW Upright Drilling Machine with Headstock and worktable up & down vertically
-
Professional Hydraulic Gear Hobbing Machine , diameter 510mm Work table
-
Gear Hobbing Machine with good rigidity for large or single production
-
High efficiency Gear hobber machine For Worm Gears , Max Diameter 1250mm
Product Details
| Brand Name | Eagle | Place of Origin | China | |
| Model Number | Z5032C/1,Z5040C/1,Z5045C/1 |
Product Description
Certification:ISO9001:2000

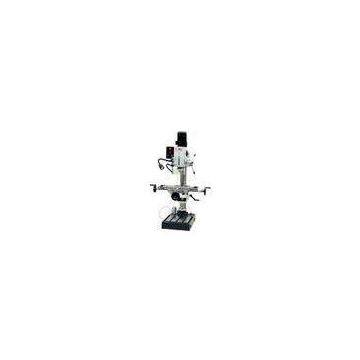

Professional Automatic Vertical Drilling Machine / electric drilling machine
Z5045C-1 series upright drilling machine with Headstock and worktable up & down vertically.
Z5045C-1 ?series upright drilling machine
Features:
Drilling , milling and tapping. Spindle speed step-changed cyclically, spindle auto-feeding and cyclic changed???? Of feeding speed.
3. Headstock swivels 360°Horizontally
????? 4. Headstock and worktable up & down vertically
????? 5. Super high column.
????? 6. Precision Micro feed.
????? 7. Positive spindle lock.
????? 8. Distinct auto device for releasing tools and operate very easily.
????? 9. Gear-driven and lower noise.
1.
1.
Quick Details:
| Condition: |
New
|
Place of Origin: |
Anhui,China (Mainland)
|
Brand Name: |
Eagle
|
| Model Number: |
Z5032C/1,Z5040C/1,
Z5045C/1
|
Type: |
Vertical
|
CNC or Not: |
Not
|
| Voltage: |
220V,
|
Power(KW): |
0.75-1.5KW
|
Dimension(L*W*H): | |
| Weight: |
5300kg
|
Certification: |
ISO9001:2000,
|
Warranty: |
one year
|
Main parameter:
| SPECIFICATION | |||
| ITEM | Z5032C/1 | Z5040C/1 | Z5045C/1 |
| Max. drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Spindle travel | 130mm | ||
| Step of spindle speed | 6 | ||
| Range of spindle speed 50Hz | 80-1250 r.p.m | ||
| 60Hz | 95-1500 r.p.m | ||
| Step of spindle auto-feeding | 6 | ||
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | ||
| Min.distance from spindle axis to column | 290mm | ||
| Max.distance from spindle nose to worktable | 700mm | ||
| Max.distance from spindle nose to stand table | 1125mm | ||
| Max.travel of headstock | 250mm | ||
| Swivel angle of headstock(horizontal) | 360° | ||
| Max.travel of worktable bracket | 600mm | ||
| Worktable size | 730×210mm | ||
| Swivel angle of table horizontally | 360° | ||
| Forward and afterward travel of worktable(Y axis) | 205mm | ||
| Left and right travel of worktable(X axis) | 500mm | ||
| Vertical travel of worktable | 570mm | ||
| Size of stand worktable of availability | 417×416mm | ||
| Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Voltage/Frequency | As customer\'s requirement | ||
| Motor speed | 1400 r.p.m | ||
| Net weight/Gross weight | 470kg/530kg | ||
| Packing size | 1850×950×1000mm | ||
| Loading amount | 18pcs/20＇container |
Standard Accessories:
Washer Wedge Tie rod.Optional Accessories:
Double speed motor. Bench vice 90mm,125mm,160mm Milling holder. Drill chuck and arbor. Milling chuck(8pcs). Heighten column Coolant system Working lamp. Auto-tapping system Boring bar Clamping kits(58pcs)Advantage:
??? 1. Professional maker.
??? 2. Popular in the world.
??? 3. Good quality and competitive.
