Axial or Radial feed Gear Hobbing Machine with forward and backward cutting
Negotiable
/ Meter
1 Meter(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Horizontal CNC Gear Hobbing Machine of CNC controlling by SIEMENS 840D
-
Punching line of straight side high speed automatic hydraulic press machine precision press
-
3D graphics high precision CNC EDM Wire Cut Machine with Multi - cutting
-
Large travel 3 axes Universal Milling Machine / horizontal milling machine
-
Rotary table 45 degrees Universal milling machine with three axes automatic feeding
-
High speed Universal Milling Machine / 2 - axes vertical milling machine
Product Details
| Brand Name | GUANHUA | Place of Origin | China | |
| Model Number | YHK31315-6 |
Product Description
Certification:ISO9001:2000
Axial or Radial feed Gear Hobbing Machine with forward and backward cutting

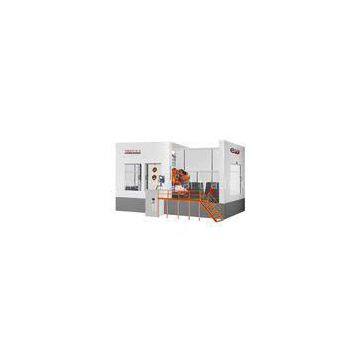

YHK31315-6 CNC gear hobbing machine with 6-axes of CNC controlling by SIEMENS 840D
YHK31315-6? CNC gear hobbing machine
Features:
The machine is large size and large module gear hobbing machine. The machine tool control System by SIEMENS840D.??? 2. The machine is suitable for large batch and single production of cylindrical spur and helical
??????? ?Gears, worm gears and spline .
??? 3. The machine is characterized by good rigidity , high working accuracy, easy in operation and
?? Maintain.
?? 4. The machine can be operated not only with forward and backward cutting, but also with axial or
?????? Radial feed.
1.
1.
Quick Details:
| Condition: |
New
|
Place of Origin: |
Liaoning,China (Mainland)
|
Brand Name: |
GUANHUA
|
| Model Number: |
YHK31315-6
|
Type: |
Horizontal
|
CNC or Not: |
Not
|
| Voltage: |
380V,
|
Power(KW): |
35KW
|
Dimension(L*W*H): |
8400×5840×4300(mm)
|
| Weight: |
55000kg
|
Certification: |
ISO9001:2000,
|
Warranty: |
one year
|
Model: YHK31315-6 ?CNC ?gear hobbing machine
Main parameter:
Number of controlling axes: 6
|
Serial No. |
Specifications | unit | External tooth | Internal tooth(mill) |
| 1 | piece diameter | mm | φ3150 | φ3150 |
| 2 | Min. workpiece diameter | mm | φ1000 | φ800 |
| 3 | Max.module(steel/cast iron) | mm | 32 | 28 |
| 3 | Number of tooth processing | ? | random | random |
| 4 | Max. width processing | mm | 1000 | 600 |
| 5 | Radial travel(X axis) | mm | 1620 | 1620 |
| 6 | Tool rest sliding carriage travel(Z axis) | mm | 1300 | 1300 |
| 7 | Max. swivel angle of tool rest(A axis) | ? | ±45° | ±30° |
| 8 | Max. dia. of Hob (mill cutter) | mm | φ350 | φ420 |
| 9 | Max. lengthen of hob | mm | 405 | ? |
| 10 | Max. tangentially movement(Y axis) | mm | 340 | ? |
| 11 | Distance between hob(mill cutter)center and worktable center | mm | 520～2140 | 0～2500 |
| 12 | Distance between hob(mill cutter)and worktable surface | mm | 855～2155 | 855～2155 |
| 14 | Hob(mill cutter)speed(B axis) | r/min | 25～120 | 55～150 |
| 15 | Worktable speed(C axis) | r/min | 1.5 | 1.5 |
| 16 | Worktable diameter | mm | φ2640 | φ2640 |
| 17 | Worktable bore diameter | mm | φ1200 | φ1200 |
| 18 | Max. loaded capacity of worktable | Kg | 30000 | 30000 |
| 19 | Axial feed speed(Z axis) | mm/min | 0～1000 | 0～1000 |
| 20 | Radial feed speed( X axis) | mm/min | 1～2000 | 1～2000 |
| 21 | Tangentially feed speed(Y axis) | mm/min | 1～3000 | 1～3000 |
| 22 | Min. programme movement of CNC axes | mm | 0.001 | 0.001 |
| 23 | Main motor power | KW | 35 | 46 |
| 24 | Total power | KW |
