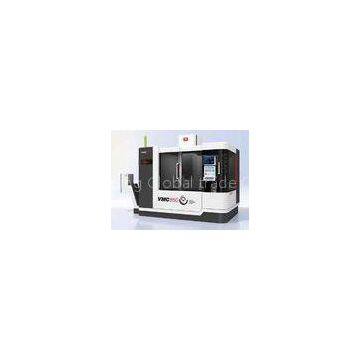

4 axis CNC Vertical Machining Center With FANUC system / vertical drilling machine
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Precisely CNC Horizontal Machining Center With FANUC System By Five Sided Machined
-
High rigidity CNC milling machine with servo motor , Vertical 3 axis milling machine 1000 X 250mm
-
Low step speed benchtop CNC Milling Machines with 160mm Parallel vise
-
4pcs tool stations worktable CNC Milling Machines With GSK controller / Auto lubricating system
-
High Speed 3 axis CNC Milling Machines With 900 x 240mm worktable
-
CNC Vertical Machining Center , cnc 3 axis milling machine are widen rectangle sliding guide rail
Product Details
| Brand Name | Eagle | Place of Origin | China | |
| Model Number | VMC850/1060/1360 |
Product Description
Certification:CE
?
4 axis CNC Vertical Machining Center With FANUC system / vertical drilling machine?
?
VMC2010 380V CNC Vertical Machining Center High Precision With FANUC system, for milling, boring and drilling
?
?
Vertical Maching Center VMC1890/VMC2010
?
Features:
1. Use strong rigid casting steel, X/Y/Z axes are supplied with rectangular guide ways by plastic sticker,medium frequency quenching and precisely scraping.
2. Spindle from Taiwan with high speed and precision..
3. Imported bearing with high .precision.
4. Coolant system equipped with pump of large flow and high lift pump to insure enough under high speed cutting.
| Condition: | New | Place of Origin: | Anhui,China (Mainland) | Brand Name: | Eagle |
| Model Number: | VMC1890/2010 | Type: | Vertical | CNC or Not: | CNC |
| Voltage: | 380V | Power(KW): | 15-18.5KW | Dimension(L*W*H): | |
| Weight: | 14000-18000kgs | Certification: | CE | Warranty: | one year |
?
Main parameter and specifications:
| SPECIFICATION | ||
| ITEM | VMC1890 | VMC2010 |
| X-Axis travel | 1800mm | 2200mm |
| Y-Axis travel | 900mm | 1000mm |
| Z-Axis travel | 680mm | 1100mm |
| Distance from Spindle nose to worktable surface | 160-840mm | 300-1400mm |
| Distance from spindle centre to surface of column ram | 950mm | 1100mm |
| T slot (width x ) | 22×5 x165 | 22×7 x140 |
| Worktable size | 900×2000mm | 1000×2200mm |
| Max.loading of worktable | 1600Kg | 5000Kg |
| Power of spindle motor | 15/18KW | 15/18KW |
| Spindle speed | 60-8000rpm | 60-8000rmp |
| Spindle taper | BT50 | BT50 |
| Spindle bearing | P4 | P4 |
| Rapid traverse speed of 3 axes | X /Y 15m/min | X /Y 15m/min |
| Z 12m/min | Z 12m/min | |
| Cutting feed rate | 1-5000mm/min | 1-5000mm/min |
| X/Y axis ball screw(diameter x space) | 55mm x 8mm | 63mm x 16mm |
| Z axis ball screw(diameter x space) | 55mm x 8mm | 55mm x 12mm |
| Min.set unit & moving unit | 0.001mm | 0.001mm |
| ATC type | Spindle floating/Manipulator | Spindle floating/Manipulator |
| Time of tools automatic changing(near) | 7/3.5s | 7/3.5s |
| ATC capacity | 20/24pcs | 20/24pcs |
| Max.dia.of tool(near) x weight x length | 127mm x15kgs x300mm | 127mm x15kgs x350mm |
| Positioning accuracy (300mm) | ±0.005mm | ±0.005 |
| Repeatability accuracy (300mm) | ±0.003mm | ±0.003 |
| Machine weight | 14000kg | 18000kg |
| Air pressure | 6kg/cm2 | 6kg/cm2 |
| Power of cooling pump for cutting | 370W | 370W |
| Power capacity | 40KVA | 40KVA |
| Overall size(LxWxH) | 5000×3500×3500mm | 4800×4100×4700mm |
| Control system | SIEMENS828D,GSK218M, | SIEMENS828D,GSK218M, |
Standard accessories:
1. Alarm light,
2. Telescopic protection cover.
3. Auto lubrication for guideway.
4. Spindle air-blow device.
5. Mobile hand wheel.
6. Level adjusting screw and pad.
7.Tool box and operation manual.
8. Portable air blast device.
9. RS232 interface.
Optional accessories:
1. Spindle oil cooler.
2. Manipulator ATC.
3. Flushing chip,
4. The 4th axis rotary,
5. Chip conveyor.
6. Mitsubishi system, FANUC system and TAIWAN SYNTEC system.
Advantage:
1. Professional make VMC series for years and have a rich experience.
2. Good relationship team for study and development.
3. Good reputation from the customer in the world.
