High precision CNC Lathe Machine Automatic lubricating with feeding motor and leadscrew

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Eagle		Place of Origin	China
Model Number	CK6150B/6163/6180

Delivery Time:within 35days
Certification:ISO9001:2000

High precision CNC Lathe Machine Automatic lubricating with feeding motor and leadscrew

CK6150B CNC Lathe , with feeding motor and leadscrew for type of direct connetion.Ensure the machining precision and positioning accuracy.

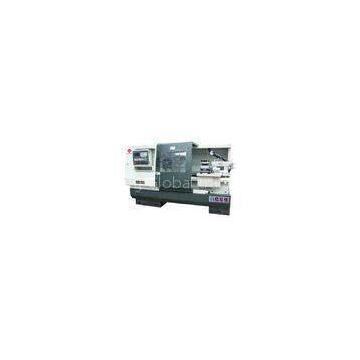

CK6150B CNC Lathe
Features:

1. Machine are made of high intensional cast iron with good aseismatic and high rigidity

2. Spindle of heavy-cutting structure to achieve high rigidity and high precision

3. With electrical turret, it can achieve high positioning, fast speed for tool change and high performance

4. With feeding motor and leadscrew for type of direct connection, it can assure the machining precision and positioning accuracy.

5. Tailstock can be adopted by hydraulic Driving to make sleeve travel bigger and easy operation.

6. Complete closed cover can protect the iron scraps splashing out.

Quick Details

?
Main parameter and specifications:
?

SPECIFICATION
ITEM	CK6150B	CK6163	CK6180
Max.swing over bed(mm)	Φ500	Φ630	Φ800	?
Max. swing over tool post(mm)	Φ290	Φ400	Φ480
Distance between centers(mm)	750,1000,1500,2000	1000,1500,2000	1000,1500
Max. machining length(mm)	750,1000,1500,2000	1000,1500,2000	1000,1500
Chuck size(mm)	K11 250/D8	K11(G) 320	K11(G) 380
Spindle nose and taper style	D8	D8	D8
Spindle speed range	Double steps 44-265rpm,265-1600rpm	10-1000rpm	10-1000rpm
Spindle bore Dia.(mm)	Φ82	Φ100	Φ100
Spindle power	7.5kw	11kw	11kw/15kw
Max. bar feeding Dia.(mm)	Φ78	Φ96	Φ96
Rapid traverse rate X	6m/min	6m/min	6m/min
Rapid traverse rate Z	8m/min	8m/min	8m/min
Number of stations	4/6/8	4/6/8	4/6/8
?	?	?	?
X/Z Accuracy of positioning repeatability	0.01/0.012	0.01/0.012	0.01/0.012
Quill Diameter(mm)	Φ75	Φ95	Φ95
Quill travel	150	250	250
Taper of quill	M.T5	M.T5	M.T5
Guide way width(mm)	390	390	390
CNC controller system	GSK980TDb, (Optional: SIEMENS, FANUC)
