Auto CNC lathe machinery bed for rough & finish turning of small short shaft type
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
CNC Lathe Machine for hub cutting , i. e. precision OD and ID turning
-
Universal bench lathe machine with perform drilling , boring and groove broaching
-
Internal and external turning end facing Bench Lathe , automatic lathe machine
-
Professional 3 JAW & 4 jaw chuck Bench Lathe / horizontal lathe machine
-
Inch and Metric system tabletop Gap - bed lathe 50Hz 60Hz engine lathe machine
-
Horizontal Turning Precision Bench Lathe For various workpieces 22kw
Product Details
| Brand Name | BOCHI | Place of Origin | China | |
| Model Number | CK7620P |
Product Description
Certification:ISO9001:2000

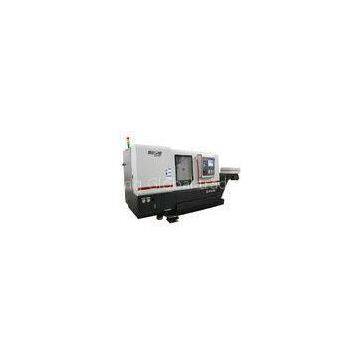

Auto CNC lathe machinery for rough & finish turning of small short shaft type & chuck type workpieces
CK7620P CNC lathe is designed for rough and finish turning of small short shaft type and chuck type workpieces in automobile
?
CK7620P? CNC Lathe
Features:
.CK7620P CNC lathe is designed for rough and finish turning of small short shaft type and chuck type workpieces in automobile,motorbike and valve industries.It features a 60°slant bed,rigid and easy for swarf removal.Longitudinal and cross linear rolling rails reduce friction and ensure running without vibration.Comb-type tool post is compact,economic and rigid.Full enclosed guard is reliable.Powerful frequency-inverting spindle motor runs steady.Turnings of curved surfaces like cylindrical,tapered and arc faces and threading are performed automatically with the machine.
?
| Condition: |
New
|
Place of Origin: |
Shanxi,China (Mainland)
|
Brand Name: |
BOCHI
|
| Model Number: |
CK7620P
|
Type: |
Horizontal
|
CNC or Not: |
CNC
|
| Voltage: |
380V
|
Power(KW): |
7.5-11kw
|
Dimension(L*W*H): | |
| Weight: |
3200kg
|
Certification: |
ISO9001:2000
|
Warranty: |
one year
|
?
Main parameter and specifications:
?
| ITEMS | UNIT | CK7620P | |
| Capacity | Max.swing diameter over bed | mm | φ400 |
| Max.swing dia. over slide | mm | φ105 | |
| Turning dia./length | mm | φ100/180 | |
| Max.turning diameter | mm | φ200 | |
| Max.bar diameter (hollow chuck/collet) | mm | φ51/φ42 | |
| Spindle | Hydraulic chuck dia | mm | φ210 |
| Type of spindle nose | GB/T5900.1 | A2-6 | |
| Spindle taper hole | ? | 1:20 | |
| Spindle bore diameter | mm | φ62 | |
| Spindle bearing(front/rear) | mm | φ100/φ90 | |
| Spindle speeds | r/min | 40-4000 | |
| Spindle motor power(continuous/30min) | kW | 7.5/11 | |
| Carriage | Slant angle | DEG | 60° |
| X/Z-axis travel | mm | 400/300 | |
| Rapid traverse rate X/Z | mm/min | 16/16(βmotor),8/8(GSK980T) | |
| Servo motor torque X/Z x/z | kW | 1.8/2.5 | |
| X/Z-axis screw dia | mm | φ32/φ40 | |
| Turret | Number of turret station | ? | 6-8 |
| Tool size(turning/boring) | mm | 20x20/φ32 | |
| Other | Power source | kVA | 20 |
| Dimensions(LXWXH) | mm | 2300x1480x1750 | |
| Total weight | kg | 3200 |
Advantage:
1. Professional make?it for years and have a rich experience.
2. Good relationship team for study and development.
3. Good reputation from the customer in the world.
