Electric Bench CNC drilling machine with Gear driven and lower noise
Negotiable
/ Square Meter
1 Square Meter(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
220V Upright CNC drill machine , table drilling machine with 417 416mm worktable
-
Professional Automatic Vertical Drilling Machine / electric drilling machine
-
Precision Micro feed Vertical Drilling Machine with Drill chuck and arbor
-
Positive spindle lock drilling machine 2.8KW ,automatic drilling machine
-
2.8KW Upright Drilling Machine with Headstock and worktable up & down vertically
-
Professional Hydraulic Gear Hobbing Machine , diameter 510mm Work table
Product Details
| Brand Name | Eagle | Place of Origin | China | |
| Model Number | Z5032C,Z5040C,Z5045C |
Product Description
Certification:ISO9001:2000

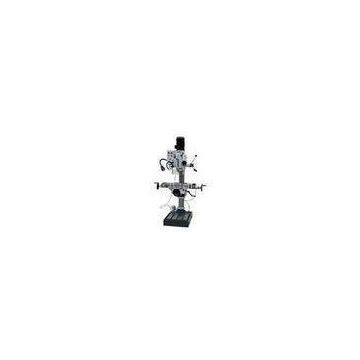

Electric Bench CNC drilling machine with Gear driven and lower noise
Z5045C series upright drilling machine with drilling , milling and tapping.Headstock swivels 360°Horizontally
Z5045C series upright drilling machine
Features:
Drilling , milling and tapping. Headstock swivels 360°Horizontally Headstock and worktable up & down vertically. Super high column. Precision Micro feed. Positive spindle lock. Distinct auto device for releasing tools and operate very easily. Gear-driven and lower noise.1.
1.
Quick Details:
| Condition: |
New
|
Place of Origin: |
Anhui,China (Mainland)
|
Brand Name: |
Eagle
|
| Model Number: |
Z5032C,Z5040C,Z5045C
|
Type: |
Vertical
|
CNC or Not: |
Not
|
| Voltage: |
220V,
|
Power(KW): |
0.75-1.5KW
|
Dimension(L*W*H): | |
| Weight: |
520kg
|
Certification: |
ISO9001:2000,
|
Warranty: |
one year
|
Main parameter:
| SPECIFICATION | |||
| ITEM | Z5032C | Z5040C | Z5045C |
| Max. drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Spindle travel | 130mm | ||
| Step of spindle speed | 6 | ||
| Range of spindle speed 50Hz | 80-1250 r.p.m | ||
| 60Hz | 95-1500 r.p.m | ||
| Min. distance from spindle axis to column | 283mm | ||
| Max. distance from spindle nose to worktable | 700mm | ||
| Max. distance from spindle nose to stand table | 1125mm | ||
| Max. travel of headstock | 250mm | ||
| Swivel angle of headstock(horizontal/perpendicular) | 360°/±90° | ||
| Max. travel of worktable bracket | 600mm | ||
| Table size | 730×210mm | ||
| Swivel angle of table horizontally | 360° | ||
| Size of stand worktable of availability | 417×416mm | ||
| Forward and afterward travel of worktable(Yaxis) | 205mm | ||
| Left and right travel of worktable(X axis) | 500mm | ||
| Vertical travel of worktable | 570mm | ||
| Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Voltage/Frequency | As customer\'s requirement | ||
| speed of motor | 1400 r.p.m | ||
| Net weight/Gross weight | 430kg/500kg | 432kg/502kg | 435kg/505kg |
| Packing size | 1850×950×1000mm | ||
| Loading amount | 18pcs/20＇container |
Standard Accessories:
Washer Wedge Tie rod.Optional Accessories
Double speed motor. Bench vice 90mm,125mm,160mm Milling holder. Drill chuck and arbor. Milling chuck(8pcs). Heighten column Coolant system Working lamp. Auto-tapping system Boring bar Clamping kits(58pcs)Advantage:
??? 1. Professional maker.
??? 2. Popular in the world.
??? 3. Good quality and competitive.
