37KW Gear Hobbing Machine of cylindrical spur helical gears with a power single indexing device
Negotiable
/ Square Meter
1 Square Meter(Min.Order)
- 0 Square Meter / Square Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
8000mm workpiece diameter table Gear Hobbing Machine 45kw / 1500 rpm
-
Gear cutting machines / Hobbing Machine With 320mm Worktable 7.5 kw / 1500 rpm
-
Axial or radial feed Gear CNC Hobbing Machine with forward and backward cutting
-
380V Horizontal Hobbing Machine For sprockets , drum gear and spline shaft
-
CNC AC servo motor Gear Hobbing Machine with two - axis linkage for factory
-
High rigidity 6 axes CNC Gear Hobbing Machine 360 mm 14000kg Horizontal Hobbing Machine
Product Details
| Brand Name | GUANHUA | Place of Origin | China | |
| Model Number | Y31630K |
Product Description
Certification:ISO9001:2000
37KW Gear Hobbing Machine of cylindrical spur helical gears with a power single indexing device
Y31630K gear hobbing machine is suitable for large and single production of cylindrical spur,helical gears...

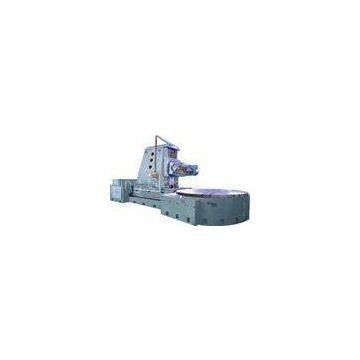

Y31630K gear hobbing machine
Features:
This machine is suitable for large and single productions of cylindrical spurAnd helical gears,worm gears and sprockets.
This series of rolling cut machine common worm is the method of radial feedProcessing.
The machine is fitted with a power single indexing device by which gears ofRelatively large module can be pre-slotted with disk milling cutter, with the
Reverse finger cutter body can be processed without air knife slot miter gear.
The machine is characterized by good rigidity,high working accuracy,easy inOperation and maintain.
1.
1.
Quick Details:
| Condition: |
New
|
Place of Origin: |
Liaoning,China (Mainland)
|
Brand Name: |
GUANHUA
|
| Model Number: |
Y31630K
|
Type: |
Horizontal
|
CNC or Not: |
Not
|
| Voltage: |
380V,
|
Power(KW): |
37KW
|
Dimension(L*W*H): |
?11800×6200×5200(mm) |
| Weight: |
100000kg
|
Certification: |
ISO9001:2000,
|
Warranty: |
one year
|
Model: Y31630K gear hobbing machine
Main parameter:
1．Range of processing
| Max. workpiece diameter | 6300mm |
| Max. module | 36mm |
| Max. helical angle | ±45° |
| Max.width | 1200mm |
2．Tool post
| Work table diameter | 3750mm | |
| Work table bore diameter | 950mm | |
| Max.loaded capacity | 65T | |
| T-slot size | 36 mm | |
|
Indexing worm wheel |
module | 12mm |
| tooth | 288 | |
| Pitch diameter | 3456 mm |
3．Worktable & Hobbing spindle
| Max. hob diameter/lengthen | 450mm/480mm |
| Tie rod threading diameter | M30 |
| Taper of hob arbor fitting | 80(metric) |
| Max. travel of tool post(Vertical) | 1300mm |
| Range of feed(vertical) | 0.20～4mm/rpm for worktable |
| Step of feeding amount(Vertical) | 12step |
| Distance between hob axis and worktable surface | 800-2100mm |
| Distance between hob and worktable center | 800-3450mm |
|
Range of spindle speed |
1 shift:6.5～19.5 2 shift:17～51 |
| Step of spindle speed | stepless |
| Diameter of hob arbor | 50,60,80 mm |
4.Motor and machine weight
| Motor power/speed | 37kw/1500 rpm |
| Fast motor/speed | 11 kw/960 rpm |
| Hydraulic motor/speed | 3.7kw/1500rpm |
| Static motor(2pcs)/speed | 1.5 kw/1500rpm |
| Coolant motor/speed | 1.5 kw/1500 rpm |
| Net Weight | 100000 kg(do not including in optional accessories) |
| Overall size(L×W×H) | 11800×6200×5200 (mm) |
Advantage:
??? 1. Professional maker.
??? 2. Popular in the world.
??? 3. Good quality and competitive.
