MITSUBISHI CNC Vertical Machining Center / precisely scraping cnc boring machine
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
4 axis CNC Vertical Machining Center With FANUC system / vertical drilling machine
-
High Precisely CNC Horizontal Machining Center With FANUC System By Five Sided Machined
-
High rigidity CNC milling machine with servo motor , Vertical 3 axis milling machine 1000 X 250mm
-
Low step speed benchtop CNC Milling Machines with 160mm Parallel vise
-
4pcs tool stations worktable CNC Milling Machines With GSK controller / Auto lubricating system
-
High Speed 3 axis CNC Milling Machines With 900 x 240mm worktable
Product Details
| Brand Name | Eagle | Place of Origin | China | |
| Model Number | VMC850/1060/1360 |
Product Description
Certification:CE

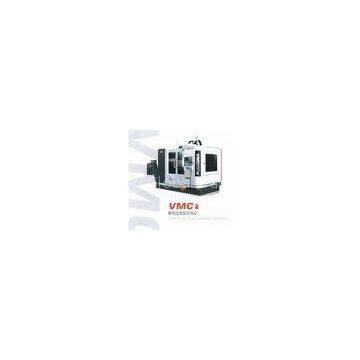

MITSUBISHI CNC Vertical Machining Center / precisely scraping cnc boring machine
MITSUBISHI system 380V CNC Vertical Machining Center High Precision VMC1370 With precisely scraping
Vertical Maching Center VMC1370/VMC1580/VMC1690
Features:
1. Use strong rigid casting steel, X/Y/Z axes are supplied with rectangular guide ways by plastic sticker,medium frequency quenching and precisely scraping.
2. Spindle from Taiwan with high speed and precision..
3. Imported bearing with high .precision.
4.Coolant system equipped with pump of large flow and high lift pump to insure enough under high speed cutting.
Quick Details| Condition: |
New
|
Place of Origin: |
Anhui,China (Mainland)
|
Brand Name: |
Eagle
|
| Model Number: |
VMC1370/1580/1690
|
Type: |
Vertical
|
CNC or Not: |
CNC
|
| Voltage: |
380V
|
Power(KW): |
15-18KW
|
Dimension(L*W*H): | |
| Weight: |
10000-14000kgs
|
Certification: |
CE
|
Warranty: |
one year
|
Main parameter and specifications:
| SPECIFICATION | |||
| ITEM | VMC1370 | VMC1580 | VMC1690 |
| X-Axis travel | 1300mm | 1500mm | 1600mm |
| Y-Axis travel | 700mm | 800mm | 900mm |
| Z-Axis travel | 650mm | 700mm | 670mm |
| Distance from Spindle nose to worktable surface | 150-800mm | 170-870mm | 170-840mm |
| Distance from spindle centre to surface of column ram | 785mm | 800mm | 950mm |
| T slot (width x ) | 18×3 x152.5 | 22×5 x135 | 22×5 x165 |
| Worktable size | 710×1400mm | 800×1700mm | 900×1800mm |
| Max.loading of worktable | 1000Kg | 1500Kg | 1500Kg |
| Power of spindle motor | 15/18KW | 15/18KW | 15 /18KW |
| Spindle speed | 60-6000rpm | 60-6000rmp | 60-6000rpm |
| Spindle taper | BT50 | BT50 | BT50 |
| Spindle bearing | P4 | P4 | P4 |
| Rapid traverse speed of 3 axes | X /Y 18m/min | X /Y 18m/min | X /Y 15m/min |
| Z 15m/min | Z 15m/min | Z 12m/min | |
| Cutting feed rate | 1-5000mm/min | 1-5000mm/min | 1-5000mm/min |
| X/Y axis ball screw(diameter x space) | 50mm x 10mm | 63mm x 10mm | 55mm x 8mm |
| Z axis ball screw(diameter x space) | 50mm x 10mm | 50mm x 10mm | 55mm x 8mm |
| Min.set unit & moving unit | 0.001mm | 0.001mm | 0.001mm |
| ATC type | Spindle floating/Manipulator | Spindle floating/Manipulator | Spindle floating/Manipulator |
| Time of tools automatic changing(near) | 9/5s | 9/5s | 7/3.5s |
| ATC capacity | 20/24pcs | 20/24pcs | 20/24pcs |
| Max.dia.of tool(near) x weight x length | 127mm x15kgs x450mm | 127mm x15kgs x450mm | 127mm x15kgs x300mm |
| Positioning accuracy (300mm) | ±0.005mm | ±0.005 | ±0.005 |
| Repeatability accuracy (300mm) | ±0.003mm | ±0.003 | ±0.003 |
| Machine weight | 10000kg | 13000kg | 14000kg |
| Air pressure | 6kg/cm2 | 6kg/cm2 | 6kg.cm2 |
| Power of cooling pump for cutting | 370W | 370W | 370W |
| Power capacity | 30KVA | 30KVA |
