4 stations GSK CNC Lathe Machine for Internal or external diameter ARC and threading
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Hydraulic Pneumatic chuck CNC Lathe Machine 900mm Z axis / 100 ~ 2500r / min
-
High rigidity Spindle of heavy cutting structure CNC Lathe Hydraulic tailstock
-
High precision CNC Lathe Machine Automatic lubricating with feeding motor and leadscrew
-
High rigidity CNC Lathe Machine with 45Integrated / Hollow Hydraulic 3 - jaw chuck
-
Roll Notching Vertical CNC Milling Machines / Tabletop milling machine
-
CNC Roll Notching and Marking Machine for professional deformed steel bar notching
Product Details
| Brand Name | Eagle | Place of Origin | China | |
| Model Number | CJK6132/500mm/750mm/1000mm |
Product Description
Certification:ISO9001:2000

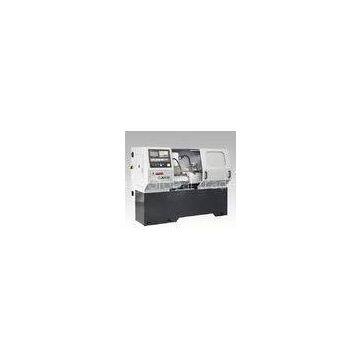

4 stations GSK CNC Horizontal Lathe Machine for Internal or external diameter ARC and threading
?
CJK6132/500mm/750mm/1000mm CNC Lathe (economic type) processing for Internal or external diameter,face,taper,ARC and threading with high efficiency.
?
CJK6132 CNC Lathe (economic type)
Features:
| Condition: | New | Place of Origin: | Anhui,China (Mainland) | Brand Name: | Eagle |
| Model Number: | CJK6132/500mm/750mm /1000mm | Type: | Horizontal | CNC or Not: | CNC |
| Voltage: | 220V,380V | Power(KW): | 3KW | Dimension(L*W*H): | 1850×1100×1650mm 1900x1100x1650mm 2300x1100x1650mm |
| Weight: | 800/900/1000kgs | Certification: | ISO9001:2000 | Warranty: | one year |
?
Main parameter and specifications:
?
| SPECIFICATION | |||
| ITEM | CJK6132/500mm | CJK6132/750mm | CJK6132/1000mm |
| Swing over bed | Φ320mm | Φ320mm | Φ320mm |
| Swing over carriage | Φ130mm | Φ130mm | Φ130mm |
| Distance between centers | 500mm | 750mm | 1000mm |
| Taper of barrel | M.T.5 | M.T.5 | M.T.5 |
| Spindle hole | Φ38mm | Φ38mm | Φ38mm |
| Range of speed(variable) | 100~2500r/min | 100~2500r/min | 100~2500r/min |
| Feed motor power(X/Z) | 4N.M/6N.M | 4N.M/6N.M | 4N.M/6N.M |
| X rapid traverse | 5m/min | 5m/min | 5m/min |
| Z rapid traverse | 5m/min | 5m/min | 5m/min |
| Max. travel of X axis | 160mm | 160mm | 160mm |
| Max. travel of Z axis | 400mm | 650mm | 900mm |
| Motor power | 3Kw | 3Kw | 3Kw |
| Tool-post | 4 stations | 4 stations | 4 stations |
| Max.tool size | 16×16mm | 16×16mm | 16×16mm |
| Min input unit | 0.001mm | 0.001mm | 0.001mm |
| repeatability accuracy(X/Y) | 0.016mm | 0.016mm | 0.016mm |
| Barrel travel of tailstock | 150mm | 150mm | 150mm |
| Barrel taper of tailstock | M.T.3 | M.T.3 | M.T.3 |
| Packing size(L×W×H) | 1850×1100×1650mm | 1900×1100×1650mm | 2300×1100×1650mm |
| N/G Weight | 800kg | 900kg | 1000kg |
| Loading amount | 6pcs/20\' container | 6pcs/21\' container | 5pcs/22\' container |
| CNC system | GSK980TD | GSK980TD | GSK980TD |
?
Standard accessories:
3-jaw chuck and tool post and wrench.Allen wrenchElectrical tool post(4-station)Cooling systemManual lubrication systemWorking lampGSK CNC controller system.Iron casting stand( for model CJK6132).
Optional accessories:
1. 6-station tool post.
2. Pneumatic chuck.
3. Hydraulic chuck.
4. Controller system: SIEMENS802S and 802C.
5. Atuo-lubrication system.
Advantage:
1. Professional make?it for years and have a rich experience.
2. Good relationship team for study and development.
3. Good reputation from the customer in the world.
