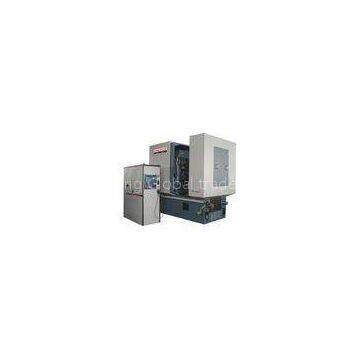

High rigidity 6 axes CNC Gear Hobbing Machine 360 mm 14000kg Horizontal Hobbing Machine

Number of controlling axes: 6

1. Range of processing:

⑴. Max. workpiece diameter:360 mm

⑵. Max. module(steel/cast iron):8 mm

⑶. Helical angle :±45°

⑷. Range of teeth for processing:4～200t

2. Hob specifications:

⑴. Max. hob diameter:170 mm

⑵. Max. hob lengthen: 210 mm

⑶. Max. hob shift axial:190 mm

⑷. Hob diameter:27,32,40,50mm(each one)

⑸. Taper of hob arbor fitting: SK50

⑹. Distance between worktable center and hob center:60～305 mm

⑺. Distance between hob axis and worktable surface:180～680 mm

⑻. Distance between tailstock end face and worktable surface:370～920 mm

⑼. Worktable diameter:360 mm

⑽. worktable bore diameter:70 mm

⑾. Distance between machine base and worktable surface:1120 mm

3.Spinlde

⑴. Range of spindle speed(B axis):80～800 mm

⑵. Axial feed speed(Z axis):1～3000 mm/min(stepless)

⑶. Radial feed speed(X axis):1～3000mm/min(stepless)

(4). Tangentially feed speed(Y axis): 1～3000mm/min(stepless)

(5).Worktable speed(C axis):1～100rpm(stepless)

4. CNC system:SINUMERIK840D

5. Main Motor

⑴. Main motor power(B axis):15 kw

⑵. AC servo motor for worktable(C axis):9.4kw

⑶. AC servo motor axial(Z axis):4.7 kw

⑷. AC servo motor radial(X axis):9.4 kw

⑸. AC servo motor tangentially(Y axis): 2.5 kw

⑹. AC servo motor for hob swivel(A axis):2.5 kw

6. Overall size (L×W×H):3022×1780×2710mm

7. Net weight:14000kg
