Product Details
| Brand Name | GUANHUA | Place of Origin | China | |
| Model Number | YHK3120 |
Product Description
Certification:ISO9001:2000

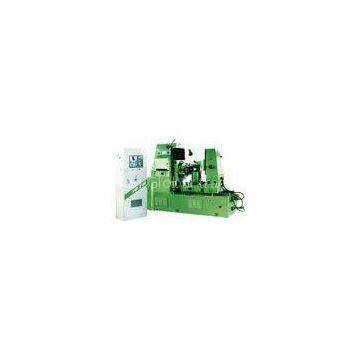

Gear cutting machines / Hobbing Machine With 320mm Worktable 7.5 kw / 1500 rpm
YHK3120 CNC gear hobbing machine with forward and backward cutting, also with axial or radial feed.
YHK3120? CNC gear hobbing machine
Features:
The machine adopt SIEMENS CNC system and AC servo motors, can achieve the two-axisLinkage.
The machine is suitable for large and single production of cylindrical spur,helical gears, wormGears, sprockets, drum gear and spline shaft.
The machine is characterized by good rigidity,high working accuracy, easy in operation andMaintain.
The machine can be operated not only with forward and backward cutting. But also with axialOr radial feed.
1.
1.
Quick Details:
| Condition: |
New
|
Place of Origin: |
Liaoning,China (Mainland)
|
Brand Name: |
GUANHUA
|
| Model Number: |
YHK3120
|
Type: |
Horizontal
|
CNC or Not: |
Not
|
| Voltage: |
380V,
|
Power(KW): |
7.5KW
|
Dimension(L*W*H): |
2260×1800×1720 (mm)
|
| Weight: |
4500kg
|
Certification: |
ISO9001:2000,
|
Warranty: |
one year
|
Model: YHK3120??CNC ?gear hobbing machine
Main parameter:
1．Range of processing
| Number of axes for controlling | 2 |
| Max. workpiece diameter | 200mm |
| Max. Module(steel/cast iron) | 6mm |
| Tooth number of processing | 8～64(12×50)* |
| Max.width of teeth | 170mm |
| Max. helical angle | ±45° |
*Promise process tooth in bracket,can process tooth in no including in bracket.
2．Tool post
| Max. travel of tool post(Vertical) | 170mm |
| Vertical move speed of tool post | 0.55m/min |
| Min. reading of swivel angle of tool post | 6′ |
| Range of feed(vertical) | 0.6～5mm/rpm. |
| Z axis resolution | 0.001mm |
| Max. Hob swiveling angle | 240° |
3．Worktable
| Work table diameter | 320mm |
| Work table bore diameter | 65mm |
| table speed | 30rpm |
| Radial travel | 145mm |
| X axis resolution | 0.001mm |
| T-slot size | 18 mm |
| Indexing pitch diameter | 256.956mm |
| Distance between hob axis and worktable surface | 310-510mm |
4．Hobbing spindle
| Max. hob diameter/lengthen | 140mm/140mm |
| Tie rod threading diameter | M20 |
| Taper of hob arbor fitting | M.T.5 |
| Max. hob axial movement | 95mm |
| Distance between hob axis and worktable surface | 260-430mm |
| Distance between hob and worktable center | 30-175mm |
| Range of spindle speed | 79～498rpm |
| Step of spindle | 9step |
5. Motor and machine weight
| Motor power/speed | 7.5 kw/1500 rpm |
| Hob axial motor/speed | 0.09 kw/1500 rpm |
| Hydraulic pump motor/speed | 1.5 kw/1000rpm |
| Coolant motor/speed | 0.75 kw/1500 rpm |
| Net. weight of machine | 3500 kg |
| Overall size(L×W×H) | 2260×1800×1720 (mm) |
6,Others:
①Diameter of hob arbor:φ22mm,φ27mm,φ32mm,φ40mm
②Arbor diameter:φ30mm
Advantage:
??? 1. Professional maker.
??? 2. Popular in the world.
??? 3. Good quality and competitive.
