P4 SMD2020 Indoor Front Service LED Display For Mobile Media
- T/T L/C D/P D/A
- 7 days
You May Like
-
P8 SMD3535 Outdoor Advertising LED Display , Front Maintenance
-
10mm High brightness Front Service LED Display , Wall Mounted
-
Front Opening P16 Front Service LED Display Advertising , 256mm * 256mm
-
P6 Video Indoor LED Screens , 1R1G1B 3 IN 1 LED Display Boards
-
SMD3535 P6 Front Service LED Display Sign For Storefront
-
P16 Rental Stage Background LED Screen Curtain , Outdoor Lightweight
Product Details
| Brand Name | Newstar-LED | Place of Origin | China | |
| Model Number | NS-IR-DS-P4 |
Product Description
Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. Front opening door
2. Save maintenance space
3. Clear vivid image quality
4. Easy Installation & Using
5.Convenient servicing
6.?Waterproof Level: IP31
P4?SMD2020?Indoor?Front?Service?LED?Display?For?Mobile?Media
Description:
1. Front service of cabinet for easy maintenance
2. Play different formats of image files, flash, WAV/MIDI, video signal from?TV, video signal from video and
other equipment
3. Different video frequency can be changed freely at the same time, and the image?can be enlarged and
reduced
4. High brightness, and can be adjustable, meets the need of changing requirement?of customer in
environment
Applications:

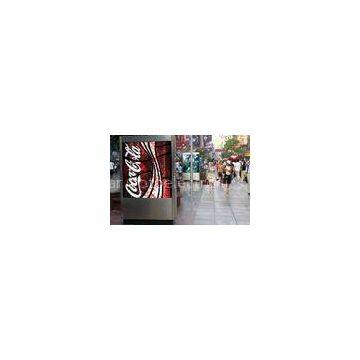

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Indoor LED Display Technical Parameter??
|
Model No. |
NS-IR-SD-P4 |
|
Pixel Pitch |
4mm |
|
Module Size |
128mm×128mm |
|
Module Resolution(Pixel) |
32dots×32dots |
|
Pixel Density |
40000dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/16 Duty Constant Current |
|
Cabinet Size |
640×512×135mm |
|
Cabinet Resolution |
160dots×128dots |
|
Brightness |
≥2500cd/cd2 |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Minimum Viewing Distance |
2m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
3100W/m2 |
|
Average Power consumption |
1000W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85HZ |
|
Refresh Frequency |
240-1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C~+85°C Working:-20°C~+60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
