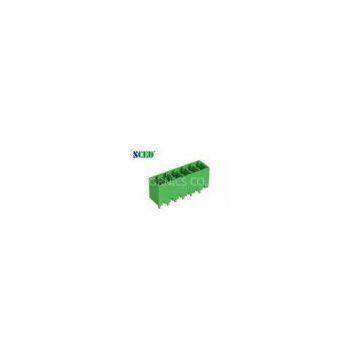

Pitch 3.50mm Male Plug In Terminal Blocks with Vertical wire inlet 300V 8A , 2P - 22P
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Female Sockets Pluggable Terminal Blocks for Electric Power , Pitch 3.81mm, 300V 8A
-
3.81mm 8A Pluggable Terminal Block , Green Female Plug In Terminal Blocks 2P - 22P
-
2P - 24P Plug In Terminal Block For Pcb, Electric Power 5.08mm Pitch , 300V 18A
-
Male Sockets 300V 8A Pluggable Power Terminal Blocks 3.81mm Pitch 2P - 22P
-
Male Sockets Plug In Terminal Blocks
-
Male Sockets Vertical PCB Plug In Terminal Block Connector Pitch 5.08mm 300V 2P - 16P
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TP381H-20 |
Product Description
Certification:UL, CE
How?to?order:
?
?
?
Applications:
?
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?
Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?
Elevator,?etc..
Pitch 3.50mm Male Plug In Terminal Blocks with Vertical wire inlet 300V 8A, 2P - 22P
□Right?angle?wire?inlet;??■Vertical?wire?inlet;??□45?degree?wire?inlet
■Single?Level;??□Double?Levels;??□Triple?Levels
?
This?header?match?with?plug?series:?TP381P-20,?TP381P-21,?TP381P-22,?TP381P-23
?
Standard?color:?Green.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?color?
you?want.
Pluggable?Terminal?Blocks,?Plug-in?Terminal?Blocks,?Terminal?Block?Connectors,?PCB?Connectors
?
?
Parameter?and?Drawing?Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current????????????? V/A |
300 / 8 |
||
|
Wire Range?????????????????????? AWG |
|||
|
IEC Technical Data |
|||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current????????????? V/A |
160 / 8 |
160 / 8 |
320 / 8 |
|
Rated Surge Voltage???????????????? KV |
2.5 |
2.5 |
2.5 |
|
Material |
|||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|||
|
PCB Hole Diameter?????????????? mm |
φ1.2 |
||
|
PinDimension???????????????????? mm |
0.8 x 0.8 |
?
?
?
Competitive?Advantage:
?
1.?Stable?good?quality
2.?Competitive?price
3.?Quickly?response
4.?Full?range?products?for?selection
5.?Flexible?to?design?the?exact?part?per?customers’?demand
?
?
?
