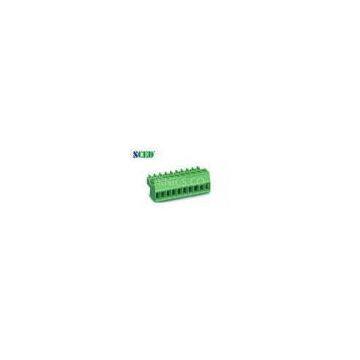

Single Level Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A , 2P - 22P

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCED		Place of Origin	China
Model Number	TP381P-20

Product Description

Delivery Time:7-20 working days
Certification:UL, CE

Applications:
?
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?
Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?
Elevator,?etc..
?
?
Single Level Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A, 2P - 22P
?
■Single?Level;??□Double?Levels;??□Triple?Levels
?
This?female?plug?match?with?male?sockets’?series:?TP381H-20,?TP381H-20V,?TP381H-22,?TP381H-22V
?
Standard?color:?Green.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?color?
you?want.
Pluggable?Terminal?Blocks,?Plug-in?Terminal?Blocks,?Terminal?Block?Connectors,?PCB?Connectors
?
?
How?to?order:

?
?
Parameter?and?Drawing?Specifications:
?

UL Technical Data	B	C	D
Rated Voltage / Current????????????? V/A	300 / 8
Wire Range?????????????????????? AWG	16-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current????????????? V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage???????????????? KV	2.5	2.5	2.5
Rated Connecting Capacity?????????? mm2	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Phosphor Bronze / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length??????????????????? mm	7
Screw / Torque??????????????????? / lbf.in	M2 / 2-2.2

?
?
?
?
?
?
Competitive?Advantage:
?
?

1.?Stable?good?quality

2.?Competitive?price

3.?Quickly?response

4.?Full?range?products?for?selection

5.?Flexible?to?design?the?exact?part?per?customers’?demand
?
?
