Home > Products > Barrier Terminal Block > Pitch 9.525mm 2-22P Barrier Terminal Block , 300V 20A Electrical Terminal Blocks

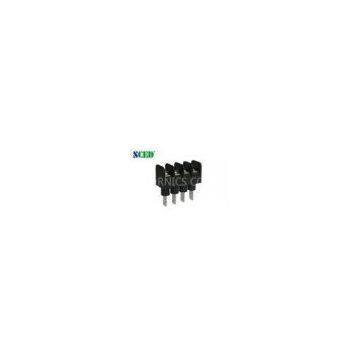

Pitch 9.525mm 2-22P Barrier Terminal Block , 300V 20A Electrical Terminal Blocks
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Double Levels Grey 7.62mm Barrier Terminal Block Connector 4*2P - 20*2P 300V
-
300V 15A 10*3P Barrier Terminal Block with Triple levels , Pitch 7.62mm
-
8.255mm PCB Terminal Block 2-32P , 300V 20A Barrier Type Terminal Block
-
2P - 22P 7.62mm 300V 10A Barrier Terminal Block For PCB , Frequency Converters
-
7.62mm 24 Poles Electrical Barrier Terminal Block for Server Site 300V 15A
-
Pitch 8.20mm 300V 10A Barrier Terminal Block , 27*2P Double Levels Power Terminal Blocks
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TB952-05-D3 |
Product Description
Certification:UL, CE
????
Applications:
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?
Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?
Elevator,?etc..
Pitch 9.525mm 2-22P Barrier Terminal Block, 300V 20A Electrical Terminal Blocks
■Right?angle?wire?inlet;??□Vertical?wire?inlet;??□45?degree?wire?inlet
■Single?Level;??□Double?levels;??□Triple?levels
Standard?color:?Black.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?color?
you?want.
Barrier?terminal?blocks,?Power?terminal?blocks,?Electrical?terminal?Blocks,?Terminal?blocks?suppliers
How?to?order:
Parameter?and?Drawing?Specifications:
|
UL?Technical?Data |
B??????????C??????????D |
|
Rated?Voltage?/?Current??????????????V/A |
???300/?20?????????????????300?/?10???????????????????? |
|
Wire?Range???????????????????????AWG |
????12-22????????????????????12-22 |
|
IEC?Technical?Data |
|
|
Overvoltage?Category |
???????Ⅲ?????????Ⅲ?????????Ⅱ |
|
Contamination?Class |
?3??????????2??????????2 |
|
Rated?Voltage?/?Current??????????????V/A |
??630?/?32????800?/?32??????1000?/?32 |
|
Rated?Surge?Voltage?????????????????KV |
???????6???????????6??????????6 |
|
Rated?Connecting?Capacity???????????mm2 |
4 |
|
Material |
|
|
Insulation?Material?/?Inflammability?Class |
PBT?/?UL94,?V-0 |
|
Terminal?/?Plating |
Brass?Tin?/?Plated |
|
Screw?/?Plating |
Steel?/?Nickel?Plated |
|
Other?Data |
|
|
PCB?Hole?Diameter??????????????????mm |
??????????????φ1.2x6.8 |
|
Stripping?Length????????????????????mm |
???????????????8-9 |
|
Screw?/?Torque????????????????????/?lbf.in |
????????????M?3.5?/?7-10 |
Competitive?Advantage:
1.?Stable?good?quality
2.?Competitive?price
3.?Quickly?response
4.?Full?range?products?for?selection
5.?Flexible?to?design?the?exact?part?per?customers’?demand
