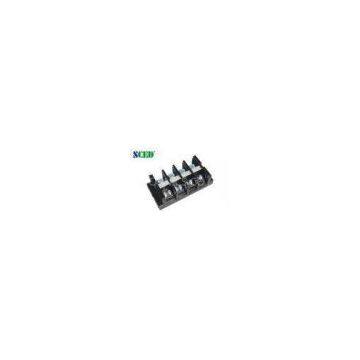

Pitch 23.50mm High Current Barrier Terminal Block for PCB , Switch 600V 101A
- T/T L/C D/P D/A
- 7 days
You May Like
-
7.30mm High Current Terminal Block , 600V 10A Barrier Power Terminal Blocks
-
600V 500A High Current Terminal Block With 60.00mm Pitch , Right Angle Wire Inlet
-
2P - 24P 101A 600V High Current Barrier Terminal Block Connector , Pitch 27.00mm
-
600V 175A 32mm Single Level Electrical Terminal Block For Power Supply
-
101A 600V PCB Terminal Blocks , Pitch 25.00mm High Current Terminal Block Connectors
-
Pitch 27.00mm Barrier High Current Terminal Block Connectors 600V 150A
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TR100-01-BM0-K4-N4 |
Product Description
Certification:UL, CE
How?to?order:
?
?
Applications:
?
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?
Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?
Elevator,?etc..
?
Pitch 23.50mm High Current Barrier Terminal Block for PCB , Switch 600V 101A
?
■Right?angle?wire?inlet;??□Vertical?wire?inlet;??□45?degree?wire?inlet
■Single?Level;??□Double?levels;??□Triple?levels
Standard?color:?Black.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?color?
you?want.
Barrier?terminal?blocks,?Power?terminal?blocks,?Electrical?terminal?Blocks,?Terminal?blocks?suppliers
?
?
Parameter?and?Drawing?Specifications:
?
UL Technical Data | B | C | D |
Rated Voltage / Current????????????? V/A | 600 / 101 | 600 / 101 | |
Wire Range?????????????????????? AWG | 2-20 | 2-20 | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current????????????? V/A | 800 / 100 | 1000 / 100 | 1000 / 100 |
Rated Surge Voltage???????????????? KV | 8 | 8 | 8 |
Rated Connecting Capacity?????????? mm2 | 38 |
||
Material | |||
Insulation Material / Inflammability Class | PC / UL94, V-0 |
||
Terminal / Plating | Brass / Nickel Plated |
||
Screw / Plating | Steel / Zinc Plated |
||
Other Data | |||
Stripping Length??????????????????? mm | 10-12 |
||
Screw / Torque??????????????????? / lbf.in | M8 / 31-40 |
?
?
?
?
Competitive?Advantage:
?
1.?Stable?good?quality
2.?Competitive?price
3.?Quickly?response
4.?Full?range?products?for?selection
5.?Flexible?to?design?the?exact?part?per?customers’?demand
?
?
?
