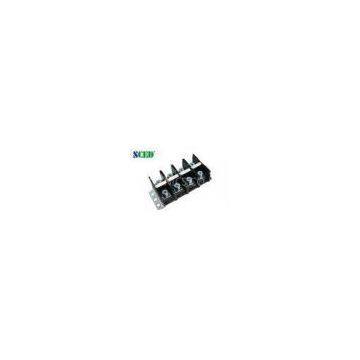

36.00mm High Current Terminal Block with Any Poles Available , 600V 200A

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCED		Place of Origin	China
Model Number	TR200-01-BM0

Delivery Time:7-20 working days
Certification:UL, CE

36.00mm High Current Terminal Block with Any Poles Available, 600V 200A

■Right?angle?wire?inlet;??□Vertical?wire?inlet;??□45?degree?wire?inlet

■Single?Level;??□Double?levels;??□Triple?levels

Standard?color:?Black.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?color?

you?want.

Barrier?terminal?blocks,?Power?terminal?blocks,?Electrical?terminal?Blocks,?Terminal?blocks?suppliers

How?to?order:

Applications:

PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?

Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?

Elevator,?etc..

Parameter?and?Drawing?Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current????????????? V/A	600 / 200	600 / 200
Wire Range?????????????????????? AWG	4/0-20	4/0-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current????????????? V/A	800 / 200	1000 / 200	1000 / 200
Rated Surge Voltage???????????????? KV	8	8	8
Rated Connecting Capacity?????????? mm2	100
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Terminal / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length??????????????????? mm	14-18
Screw / Torque??????????????????? / lbf.in	M10 / 50-60

Competitive?Advantage:

1.?Stable?good?quality

2.?Competitive?price

3.?Quickly?response

4.?Full?range?products?for?selection

5.?Flexible?to?design?the?exact?part?per?customers’?demand
