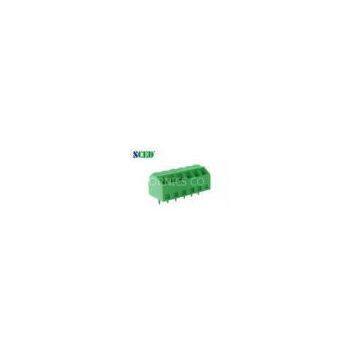

Pitch 3.81mm PCB Terminal Block 300V 10A , 2P-28P for Rail Transportation
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
2P - 24P 300V 10A PCB Terminal Block, Pitch 5.08mm Power Terminal Block For Power Supply
-
Euro Type 6.20mm PCB Screw Terminal Block 300V 10A , 2P - 24P with UL CE
-
Pitch 5.08mm Pcb Mount Terminal Block , 2P - 24P 300V 10A Electrical Terminal Blocks
-
Triple Decks Pitch 5.08mm PCB Screw Terminal Block 300V 10A 2P - 24P Euro Type
-
Pitch 5.08mm PCB Terminal Block , 300V 10A PCB Screw Terminal Blocks 2P - 24P
-
5.0mm 300V 10A PCB Terminal Block with Right angle wire inlet , 2 Poles - 24 Poles
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TJ381-09 |
Product Description
Certification:UL, CE
Pitch 3.81mm PCB Terminal Block 300V 10A, 2P-28P for Rail Transportation
?
□Right?angle?wire?inlet;??□Vertical?wire?inlet;??■45?degree?wire?inlet
■Single?Deck;??□Double?decks;??□Triple?decks
Standard?color:?Green.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?color?
you?want.
PCB?mount?terminal?blocks,?PCB?screw?terminal?blocks,?Electrical?terminal?Blocks,?Euro?raising?terminal?
blocks,?terminal?block?manufacturer
?
How?to?order:
?
?
Applications:
?
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?
Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?
Elevator,?etc..
?
?
Parameter?and?Drawing?Specifications:
?
UL Technical Data | B | C | D |
Rated Voltage / Current????????????? V/A | 300 / 10 | ||
Wire Range? ?????????????????????AWG | 16-24 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current????????????? V/A | 160 / 10 | 200 / 10 | 400 / 10 |
Rated Surge Voltage???????????????? KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity?????????? mm2 | 1.0 |
||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 |
||
Clamp Cage / Plating | Brass / Nickel Plated |
||
Terminal / Plating | Brass / Tin Plated |
||
Screw / Plating | Steel / Zinc Plated |
||
Other Data | |||
PCB Hole Diameter????????????? ???mm | φ1.3 |
||
Stripping Length??????????????????? mm | 4-5 |
||
Screw / Torque??????????????????? / lbf.in | M2 / 1.8-2.0 |
?
?
?
?
Competitive?Advantage:
?
1.?Stable?good?quality
2.?Competitive?price
3.?Quickly?response
4.?Full?range?products?for?selection
5.?Flexible?to?design?the?exact?part?per?customers’?demand
?
?
?
