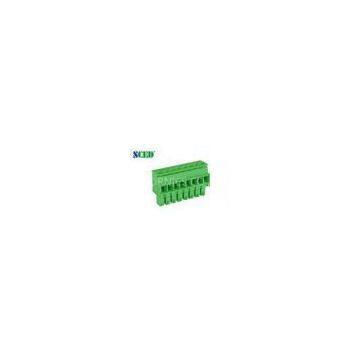

Female Sockets 3.81mm Pluggable Terminal Blocks , 300V 8A PCB Terminal Block Connector
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Pitch 3.50mm Male Plug In Terminal Blocks with Vertical wire inlet 300V 8A , 2P - 22P
-
Female Sockets Pluggable Terminal Blocks for Electric Power , Pitch 3.81mm, 300V 8A
-
3.81mm 8A Pluggable Terminal Block , Green Female Plug In Terminal Blocks 2P - 22P
-
2P - 24P Plug In Terminal Block For Pcb, Electric Power 5.08mm Pitch , 300V 18A
-
Male Sockets 300V 8A Pluggable Power Terminal Blocks 3.81mm Pitch 2P - 22P
-
Male Sockets Plug In Terminal Blocks
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TP381P-01 |
Product Description
Certification:UL, CE
Female Sockets 3.81mm Pluggable Terminal Blocks, 300V 8A PCB Terminal Block Connector 2P-22P, Plug-in?Terminal?Blocks
?
■Single?Level;??□Double?Levels;??□Triple?Levels
?
This?female?plug?match?with?male?sockets’?series:?TP381H-00,?TP381H-00V,?TP381H-01,?TP381H-01V,?TP381H-02,?TP381P-05
?
Standard?color:?Green.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?color?
you?want.
Pluggable?Terminal?Blocks,?Plug-in?Terminal?Blocks,?Terminal?Block?Connectors,?PCB?Connectors
?
How?to?order:
?
?
Applications:
?
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?
Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?
Elevator,?etc..
?
?
Parameter?and?Drawing?Specifications:
?
UL Technical Data | B | C | D |
Rated Voltage / Current????????????? V/A | 300 / 8 | ||
Wire Range?????????????????????? AWG | 16-30 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current????????????? V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage???????????????? KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity?????????? mm2 | 1.5 |
||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 |
||
Clamp Cage / Plating | Brass / Nickel Plated |
||
Terminal / Plating | Phosphor Bronze / Tin Plated |
||
Screw / Plating | Steel / Zinc Plated |
||
Other Data | |||
Stripping Length??????????????????? mm | 7 |
||
Screw / Torque??????????????????? / lbf.in | M2 / 2-2.2 |
?
?
?
Competitive?Advantage:
?
1.?Stable?good?quality
2.?Competitive?price
3.?Quickly?response
4.?Full?range?products?for?selection
5.?Flexible?to?design?the?exact?part?per?customers’?demand
?
?
?
