Home > Products > Plug In Terminal Block > 300V 18A, 2P-24P 5.08mm Female Plug In Terminal Block Connector for Server Site

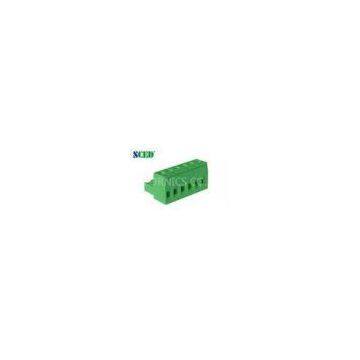

300V 18A, 2P-24P 5.08mm Female Plug In Terminal Block Connector for Server Site
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Female Sockets, Pitch 3.50mm Pluggable Plug in Terminal Blocks 300V 8A 2P - 22P
-
Pitch 7.62mm Female Plug in Terminal Block with Single Level , 300V 18A, 2P-16P
-
Female Sockets 300V 15A Pluggable Terminal Block Connector , 7.5mm Pitch
-
Grey 18A 300V 7.50mm Plug In Terminal Block Male Header , Vertical Wire Inlet
-
Single Level Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A , 2P - 22P
-
Single Level 5.08mm Electrical Plug In Terminal Block 300V Header , Male Sockets
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TP508P-00 |
Product Description
Certification:UL, CE
300V 18A, 2P-24P 5.08mm Female Plug In Terminal Block Connector for Server Site
■Single?Level;??□Double?Levels;??□Triple?Levels
?
This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06
?
Standard?color:?Green.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?the?color?
you?want.
Pluggable?Terminal?Blocks,?Plug-in?Terminal?Blocks,?Terminal?Block?Connectors,?PCB?Connectors
?
?
Applications:
?
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?
Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?
Elevator,?etc..
?
?
How?to?order:
?
?
Parameter?and?Drawing?Specifications:
?
UL Technical Data | B | C | D |
Rated Voltage / Current????????????? V/A | 300 / 18 | 300 / 18 |
|
Wire Range?????????????????????? AWG | 12-30 | 12-30 |
|
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current????????????? V/A | 250 / 18 | 320 / 18 | 630 / 18 |
Rated Surge Voltage???????????????? KV | 4 | 4 | 4 |
Rated Connecting Capacity?????????? mm2 | 2.5 |
||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 |
||
Clamp Cage / Plating | Brass / Nickel Plated |
||
Terminal / Plating | Phosphor Bronze / Tin Plated |
||
Screw / Plating | Steel / Zinc Plated |
||
Other Data | |||
Stripping Length??????????????????? mm | 7 |
||
Screw / Torque??????????????????? / lbf.in | M3 / 4.4-5.3 |
?
?
?
?
?
Competitive?Advantage:
?
1.?Stable?good?quality
2.?Competitive?price
3.?Quickly?response
4.?Full?range?products?for?selection
5.?Flexible?to?design?the?exact?part?per?customers’?demand
?
?
