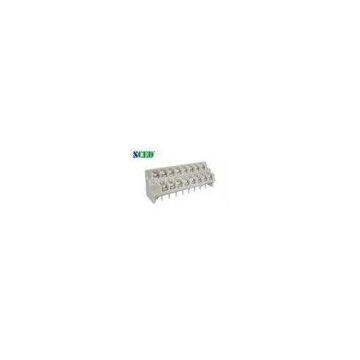

Double Levels Grey 7.62mm Barrier Terminal Block Connector 42P - 202P 300V

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCED		Place of Origin	China
Model Number	TB762-04-GY

Delivery Time:7-20 working days
Certification:UL, CE

Applications:

PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?

Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?

Military,?Elevator,?etc..

Competitive?Advantage:

1.?Stable?good?quality

2.?Competitive?price

3.?Quickly?response

4.?Full?range?products?for?selection

5.?Flexible?to?design?the?exact?part?per?customers’?demand

Double Levels Grey 7.62mm Barrier Terminal Block Connector 4*2P - 20*2P 300V

■Right?angle?wire?inlet;??□Vertical?wire?inlet;??□45?degree?wire?inlet

□Single?Level;??■Double?levels;??□Triple?levels

Standard?color:?Grey.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?

the?color?you?want.

Barrier?terminal?blocks,?Power?terminal?blocks,?Electrical?terminal?Blocks,?Terminal?blocks?suppliers

How?to?order:

Parameter?and?Drawing?Specifications:

UL?Technical?Data	B??????????C??????????D
Rated?Voltage?/?Current??????????????V/A	???300?/?15??????????????????300?/?10?????????????????????
Wire?Range???????????????????????AWG	????14-22????????????????????14-22
IEC?Technical?Data
Overvoltage?Category	???????Ⅲ?????????Ⅲ?????????Ⅱ
Contamination?Class	?3??????????2??????????2
Rated?Voltage?/?Current??????????????V/A	??250?/?24??????320?/?24???????400?/?24
Rated?Surge?Voltage?????????????????KV	???????4??????????4???????????4
Rated?Connecting?Capacity???????????mm2	2.5
Material
Insulation?Material?/?Inflammability?Class	PBT?/?UL94,?V-0
Terminal?/?Plating	Brass?/Tin?Plated
Screw?/?Plating	Steel?/?Nickel?Plated
Other?Data
PCB?Hole?Diameter??????????????????mm	??????????????φ1.5
Stripping?Length????????????????????mm	???????????????7-8
Screw?/?Torque????????????????????/?lbf.in	????????????M?3/?5-7?
