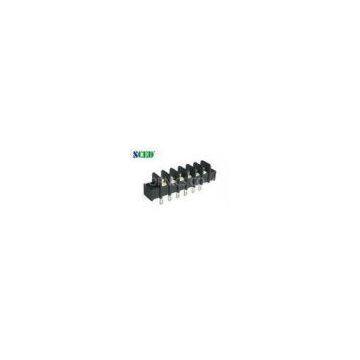

Electrical Barrier Terminal Block Connector 7.62mm Pitch For Automatic Control
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Double Levels 300V 15A Barrier Power Terminal Blocks Pitch 7.62mm
-
Single Level Barrier PCB Terminal Block Pitch 9.525mm 300V 20A , 2P - 24P
-
Black Barrier Type PCB Terminal Blocks 7.62mm Pitch , 300V 2P - 22P with UL, CE
-
Pitch 9.525mm 2-22P Barrier Terminal Block , 300V 20A Electrical Terminal Blocks
-
Double Levels Grey 7.62mm Barrier Terminal Block Connector 4*2P - 20*2P 300V
-
300V 15A 10*3P Barrier Terminal Block with Triple levels , Pitch 7.62mm
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TB762-01F-D3 |
Product Description
Certification:UL, CE
Pitch?7.62mm,?300V?15A,?2P-22P, Electrical Barrier Terminal Block Connector For Automatic Control
?
■Right?angle?wire?inlet;??□Vertical?wire?inlet;??□45?degree?wire?inlet
■Single?Level;??□Double?levels;??□Triple?levels
Standard?color:?Black.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?
the?color?you?want.
Barrier?terminal?blocks,?Power?terminal?blocks,?Electrical?terminal?Blocks,?Terminal?blocks?suppliers
?
How?to?order:
?
?
Applications:
?
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,
?Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?Military,?
Elevator,?etc..
?
?
Parameter?and?Drawing?Specifications:
?
UL Technical Data | B | C | D |
Rated Voltage / Current????????????? V/A | 300/15 | 300/10 |
|
Wire Range?????????????????????? AWG | 14-22 | 14-22 |
|
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current????????????? V/A | 250 / 24 | 320 / 24 | 400 / 24 |
Rated Surge Voltage???????????????? KV | 4 | 4 | 4 |
Rated Connecting Capacity?????????? mm2 | 2.5 |
||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 |
||
Terminal / Plating | Brass / Tin Plated |
||
Screw / Plating | Steel / Nickel Plated |
||
Other Data | |||
PCB Hole Diameter????????????????? mm | 1.2x3.4 |
||
Stripping Length??????????????????? mm | 7-8 |
||
Screw / Torque??????????????????? / lbf.in | M 3 / 5-7 |
?
?
Competitive?Advantage:
?
1.?Stable?good?quality
2.?Competitive?price
3.?Quickly?response
4.?Full?range?products?for?selection
5.?Flexible?to?design?the?exact?part?per?customers’?demand
?
?
